Bipods & Tripods

Open Clamp Bipod allows a surveyor to set up a freestanding GPS antenna pole or prism pole 1-to-1.25 inch (25.4-to-31.8 mm) outside diameter. Legs extend to 6 feet (1.8 m) for use in uneven terrain.

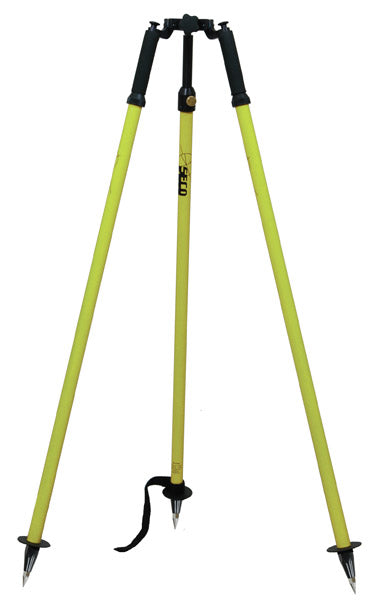

The Thumb-Release Tripod uses the same thumb action release and lock mechanism as the popular Thumb-Release Bipod 1-to-1.5 inch (25.4-to-38.1 mm) outside diameter poles thread easily through the open clamp on top The legs (independently) extend to 6 ft (1.8 m) and collapse to 43 in (109 cm) Fluorescent Yellow Weighs 6.00 lb (2.60 kg)

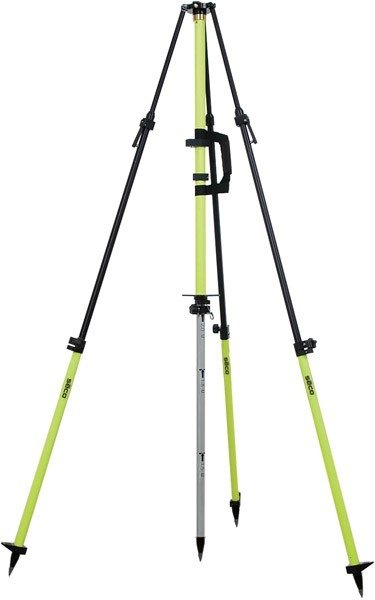

This tripod features a collapsible center staff with twist locking mechanism that rotates 360; to check calibration of plumbing with a 8-minute vial, and quick release; twist locking mechanisms on the legs. It is dual graduated and adjusts to three heights: 2 m, 1.8 m, and 1.5 m.

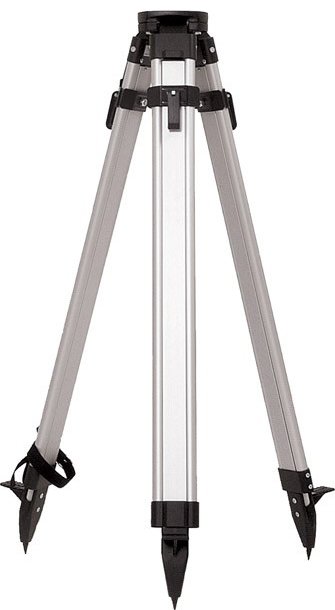

These tripods accommodate 5/8 x 11 instruments and are designed for all types of jobs. The telescopic Aluminum (Round) legs allow for setup to extend to 65 in (1.60 m). Features a quick clamp and a triangle/flat head tripod. Weighs 7.45 lb (3.38 kg).

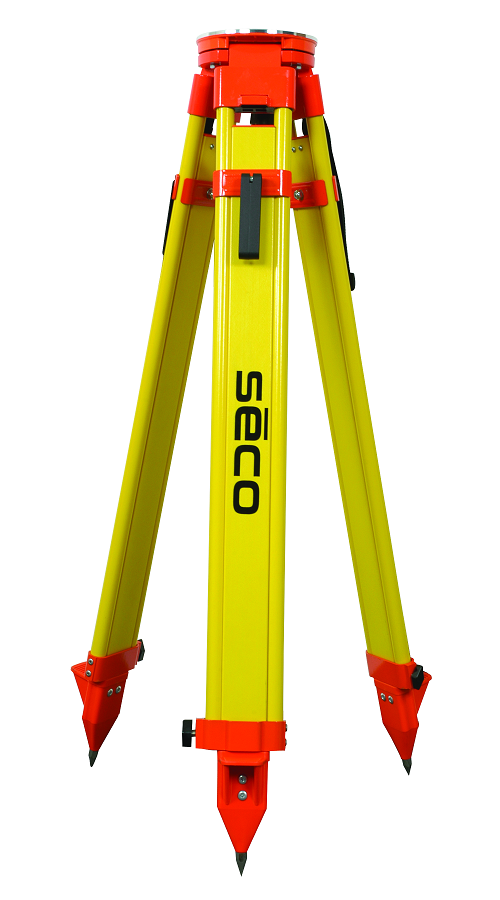

6-5/8-inch flat head with large center hole (2-5/8-inch) to facilitate an easy set-up over a point Foot is equipped with a replaceable point made of hardened steel Dual Locks (Quick Clamp and Screw Clamp) Standard 5/8 x 11 threaded brass instrument stud Yellow fiberglass legs, orange aluminum hardware Snap cap to protect tripod head Comes with shoulder strap for comfortable carrying over longer distances Made in North America under strict quality controls Extends 70.75 inches (179 cm) Collapses 43.75 inches (111 cm) Weighs 13.60 lb (6.16 kg)

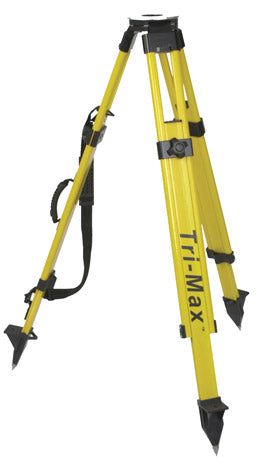

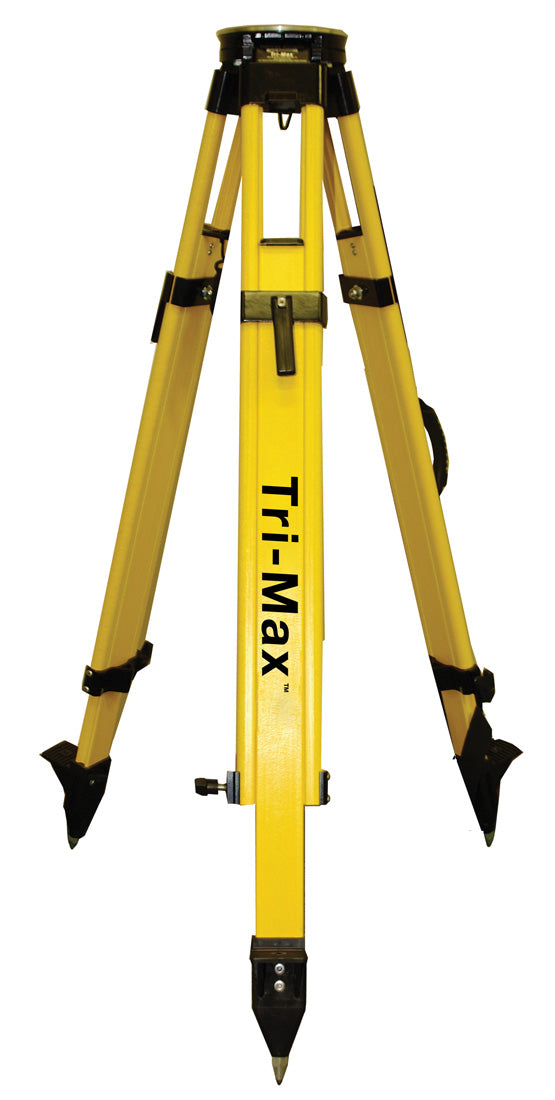

The Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo driven and robotic total stations, 3-D laser scanners or construction lasers The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point A retaining system—which prevents leg kick out and accidental falls on slick surfaces—is stored on the inside of the leg and can be left in place when the tripod is not in use The large ‘footbed’ is there to facilitate solid planting for stability The shape and size of the foot are designed to allow for a solid placement on any terrain The foot is equipped with a replaceable point and a retention loop for use with a safety strap The Tri-Max can handle equipment up to 65 lb (30 kg) Dual Clamp Lock type Black Hardware, Fiberglass Legs Extends 71 in (1.8 m) Collapses 44.5 in (113 cm) Weighs 17.00 lb (7.70 kg)

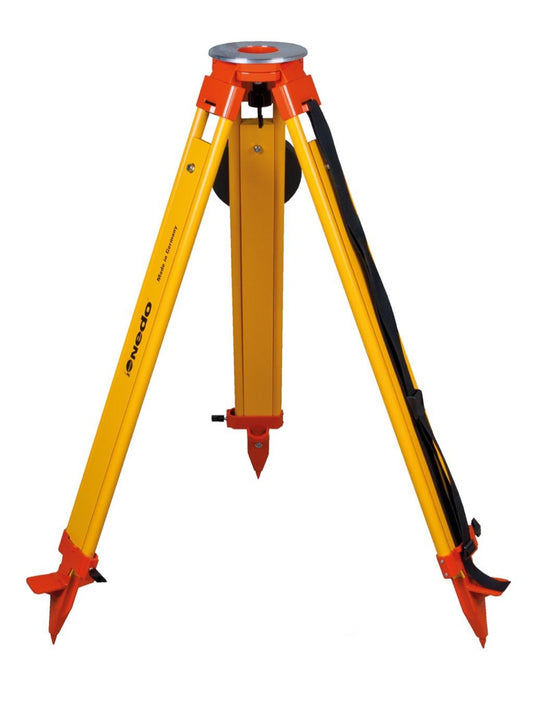

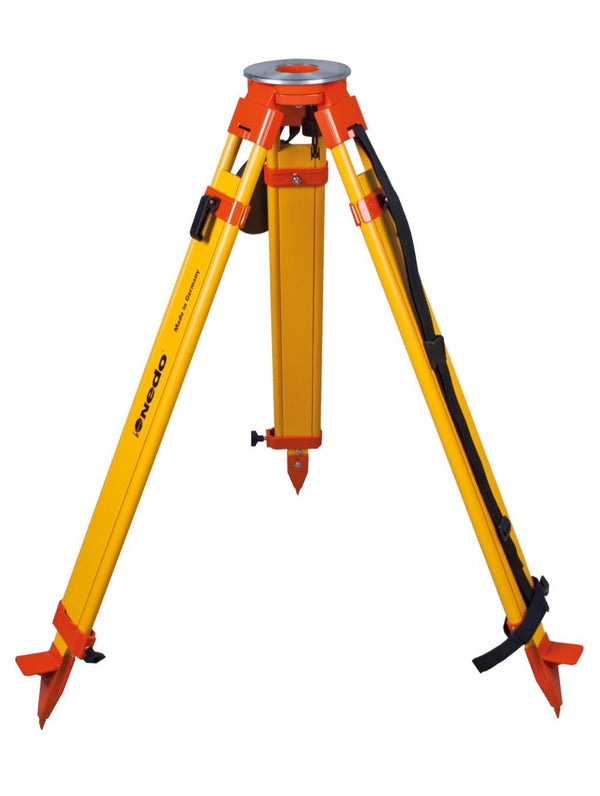

Suitable for: Total stations Robotic total stations Digital levels Theodolites Heavy-duty rotating lasers Features: Wooden parts made of finest European hard wood Plastic-coated wooden legs for utmost durability Large round tripod head made of aluminum, powder-coated Dual clamp: quick release and screw clamp Break-proof quick release levers, made of aluminum Snap Cap Brass hinge pins for extra stability Tripod shoes made of aluminum w/ replaceable steel points Carrying strap In accordance with ISO 12858-2-H Strapless-Go: Retract-and-go transport locking system

Designed to provide the extra stability required when working indoors on concrete and other hard surfaces Made of heavy-duty aluminum and measures 35 x 35 x 35 inches Collapses for compact storage The rubber O-ring fits over the foot of the tripod for extra stability Weighs 3 lb (1.36 kg) Works with any style of tripod; tripod pictured is for illustration only

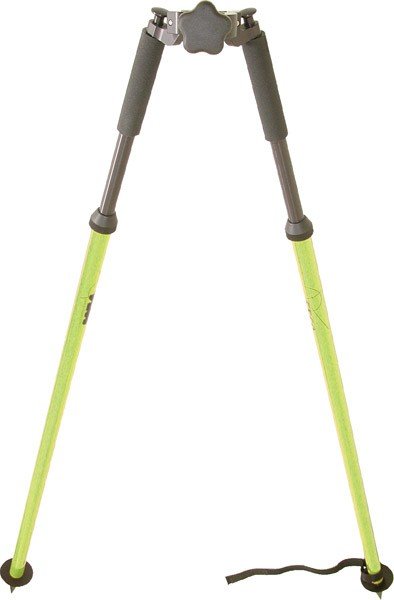

The Mini Bipod utilizes the same design concepts as the popular 5217-04 bipod, just shorter 1-to-1.25 inch (25.4-to-31.8 mm) diameter poles attach easily through the open clamp 1.5 inch (3.81 cm) outside diameter poles can be loaded through the top Collapses to 25 inches (63.5 cm) and extends to 35 inches (88.9 cm) Flo Yellow Weighs 3.50 lb (1.60 kg)

This heavy-duty tripod easily holds lasers or robots with a large 6 inch diameter round head.

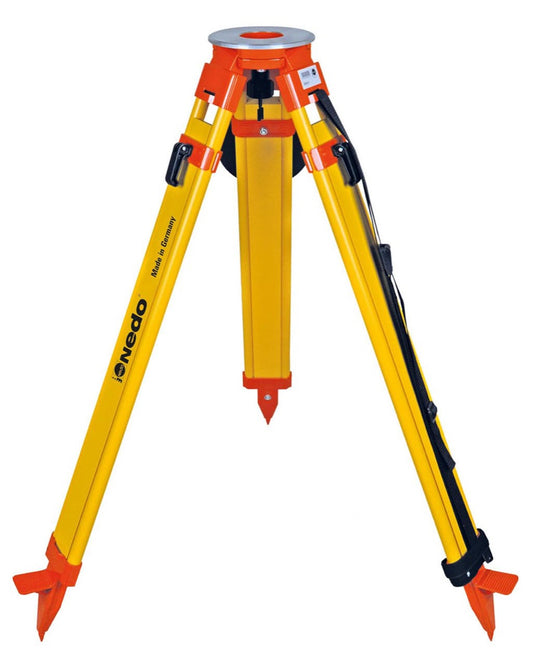

Suitable for: Total stations Robotic total stations Digital levels Theodolites Heavy-duty rotating lasers Features: Wooden parts made of finest European hard wood Plastic-coated wooden legs for utmost durability Large round tripod head made of aluminum, powder-coated Snap Cap Break-proof quick release levers, made of aluminum Brass hinge pins for extra stability Tripod shoes made of aluminum w/ replaceable steel points Carrying strap In accordance with ISO 12858-2-H Strapless-Go: Retract-and-go transport locking system

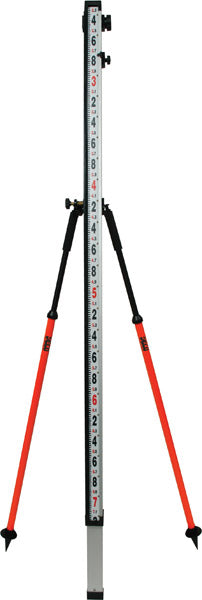

This bipod features a special head that will hold a rectangular rod The head will fit rods with widths between 1.57 and 2.56 inches Flo Orange Weighs 4.00 lb (1.82 kg)

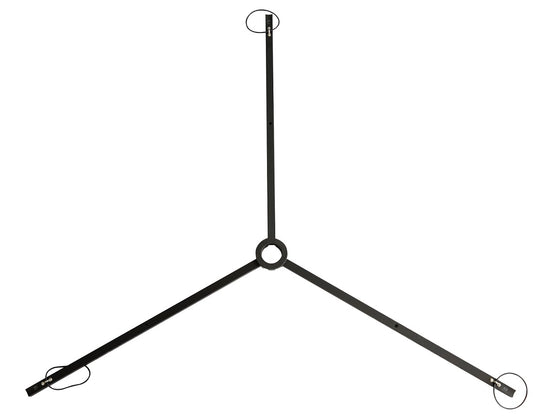

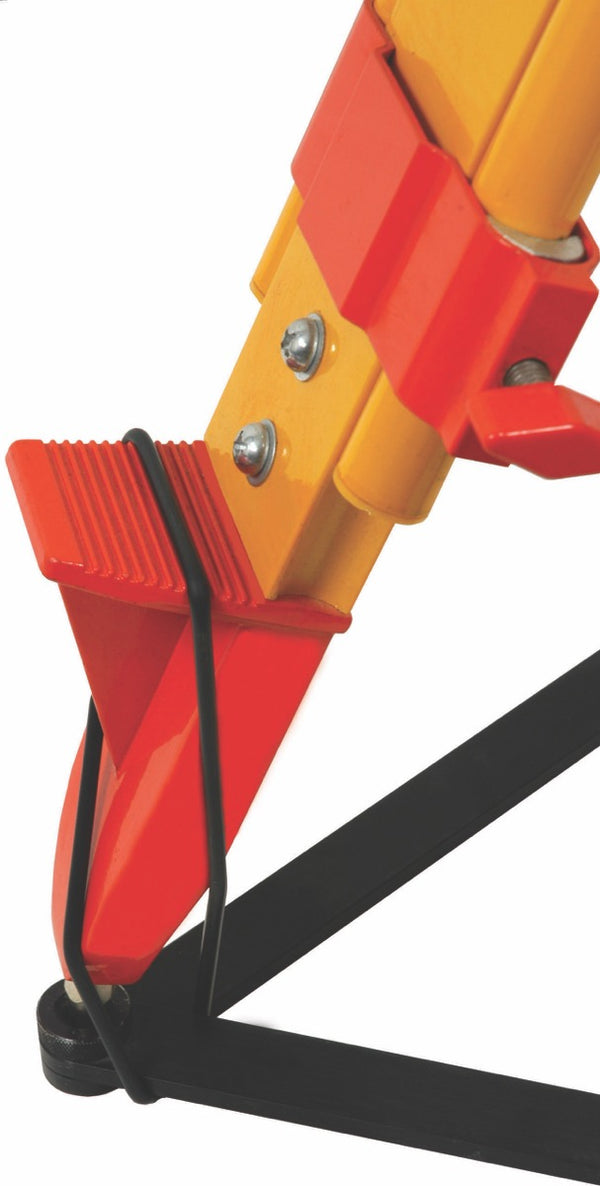

This Stabilizer helps prevent tripod legs from slipping when used on hard, slick surfaces. Lightweight and portable Collapses to  26 3/8″ (67cm) Opens to a three point star with 26 1/2″ (67cm) legs Two 0.315″ (8mm) hole in each leg, one at 35CM from center and one at 65cm. Anodized aluminum legs O-rings to hold tripod foot in place Center opening  1 7/8″ (45mm) Weight  1.05 lbs (0.48kg)

This bracket holds a radio antenna securely to a tripod leg The heavy-duty bracket makes plumbing the antenna easy Fits all full-size and heavy-duty tripods and uses a 1/2 inch long, 5/8 x 11 male stud to secure the antenna or extension (tripod sold separately) It can be used with the SECO Six Foot Snap-Lock Radio Antenna Pole (#5139-02) or any extension with a male/female 5/8 x 11 connection Weighs 1.55 lb (0.70 kg)

The Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo-driven and robotic total stations, 3-D laser scanners or construction lasers The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point A retaining system—which prevents leg kick out and accidental falls on slick surfaces—is stored on the inside of the leg and can be left in place when the tripod is not in use The large ‘footbed’ is there to facilitate solid planting for stability The shape and size of the foot are designed to allow for a solid placement on any terrain The foot is equipped with a replaceable point and a retention loop for use with a safety strap The Tri-Max can handle equipment up to 65 lb (30 kg) Quick Clamp Lock type Fiberglass Legs, black Hardware Extends 71 in (1.8 m) Collapses 44.5 in (113 cm) Weighs 17.00 lb (7.70 kg)

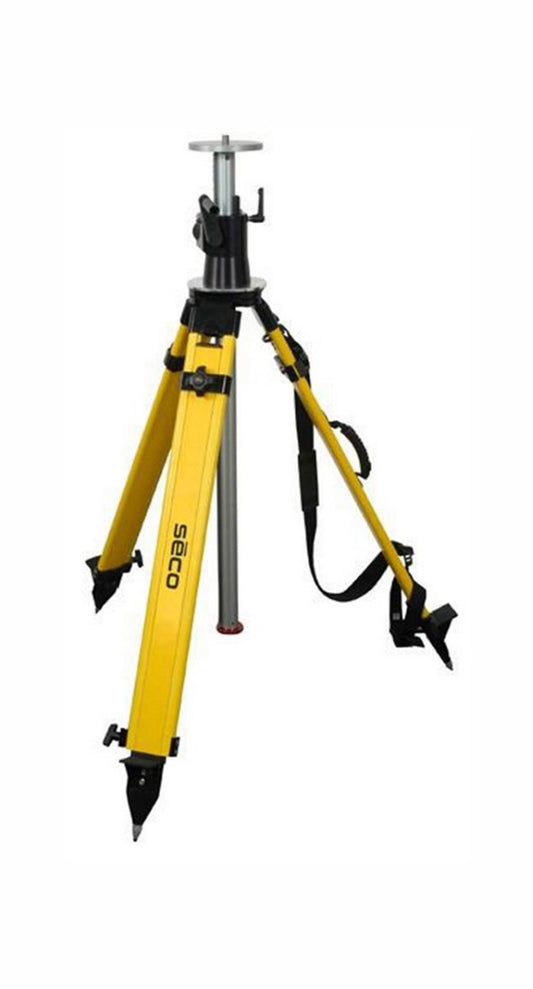

These tripods accommodate 5/8 x 11 instruments and are designed for all types of jobs Features a built-in circular vial in the instrument head and safety chains on the legs to prevent slipping on hard surfaces The telescopic Aluminum (Round) legs allow for setup to extend 91.2 in (2.32 m) Featuring a Quick Clamp lock and an Elevator/Round head Collapses to 4.26 ft (1.26m) Will fit in tripod carrying bag 8154-12 Black Hardware Weighs 16.30 lb (7.39 kg)
