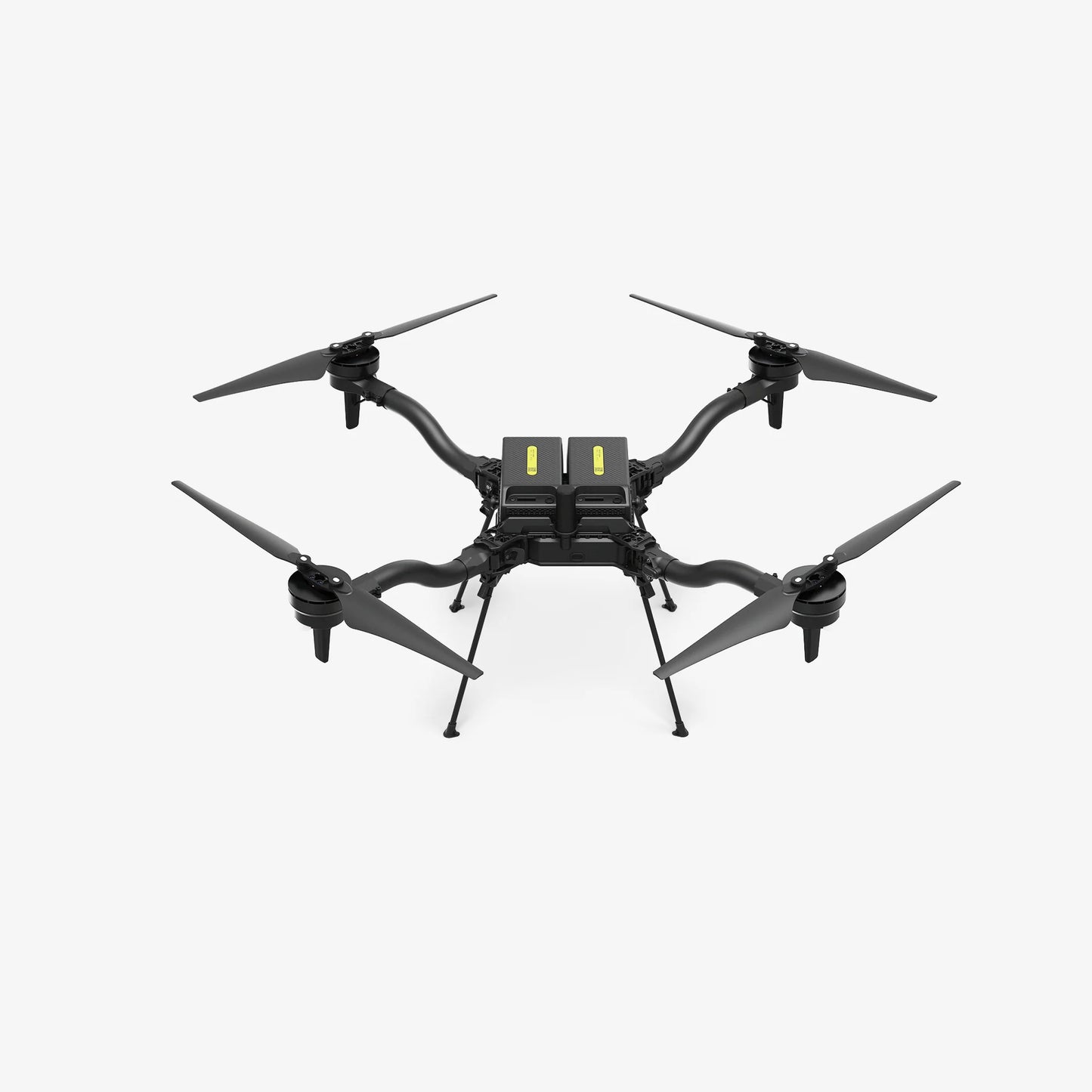

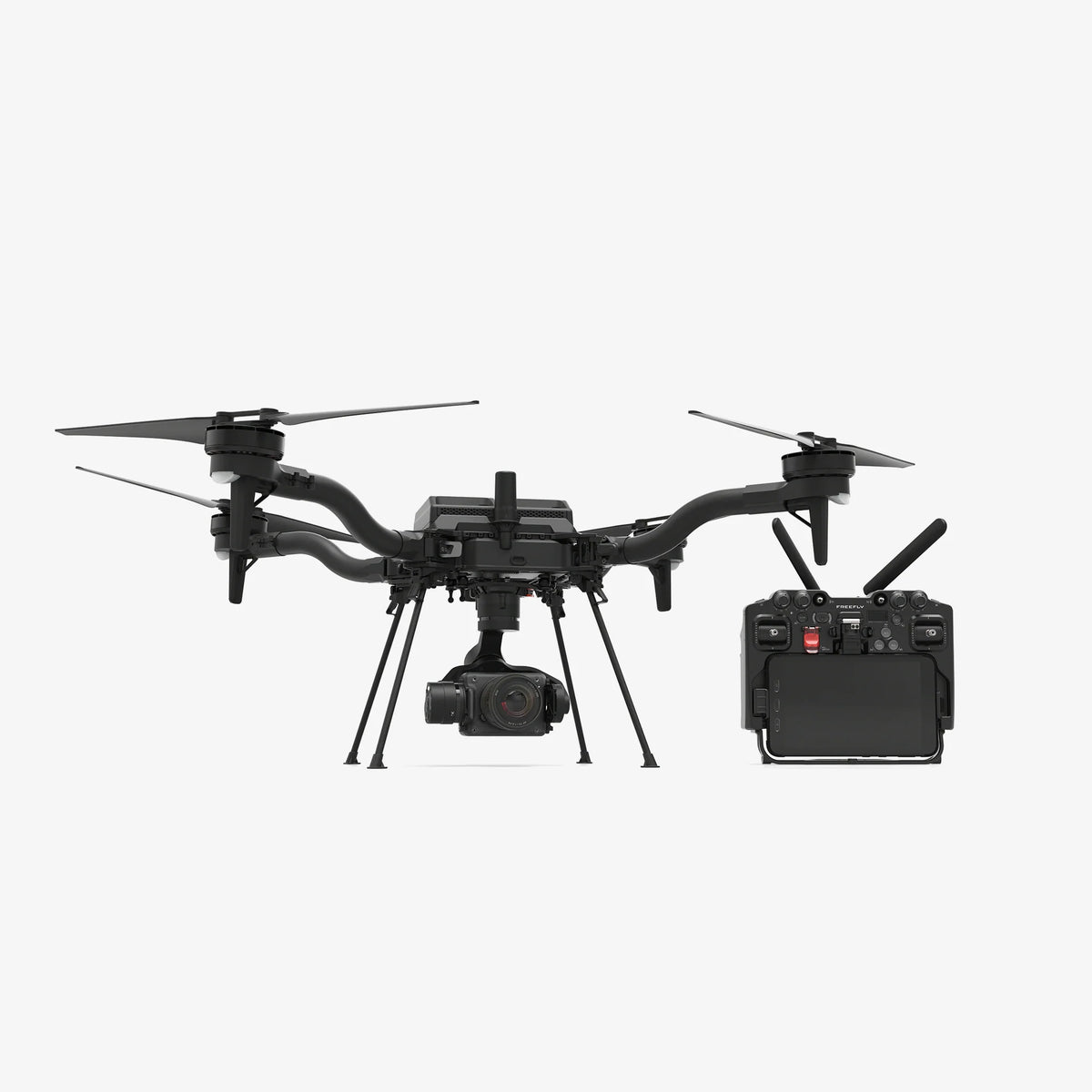

FreeFly Astro Max

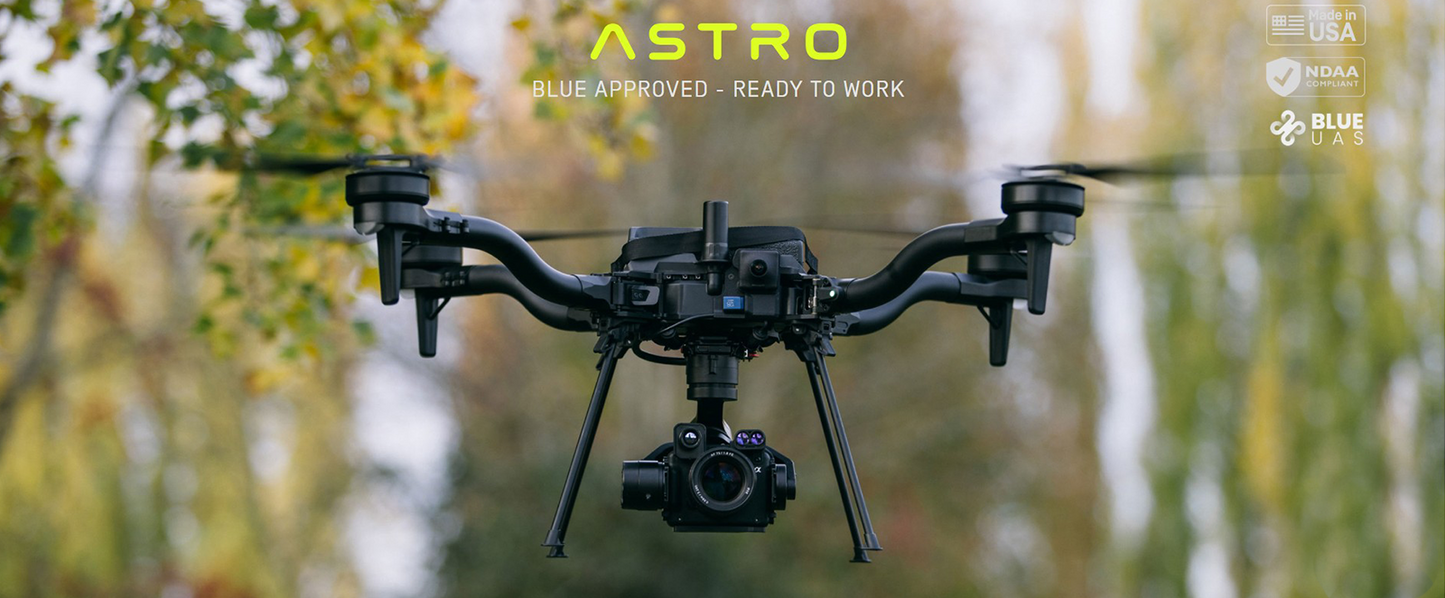

Astro Max is Freefly’s compact industrial drone platform!

Freefly understands the need for quality tools. For more than 10 years Freefly aircraft have carried cinema cameras for Hollywood and high-end productions around the world. It carries valuable payloads in high-pressure situations. We also understand the need for flexibility. Astro’s interface specs are open, making it a flexible and reliable tool to get your new ideas in the air.

Each Astro Max includes the basics of your drone kit, ready to mount a variety of payloads:

Astro Max Drone

• Ships in Astro Compact Travel Case with pre-installed: Astro Isolator, folding landing gear, and high efficiency props
• Simple tools, proptectors, and some spare bits
• Ships with Standard Remote ID enabled**
• Not NDAA approved

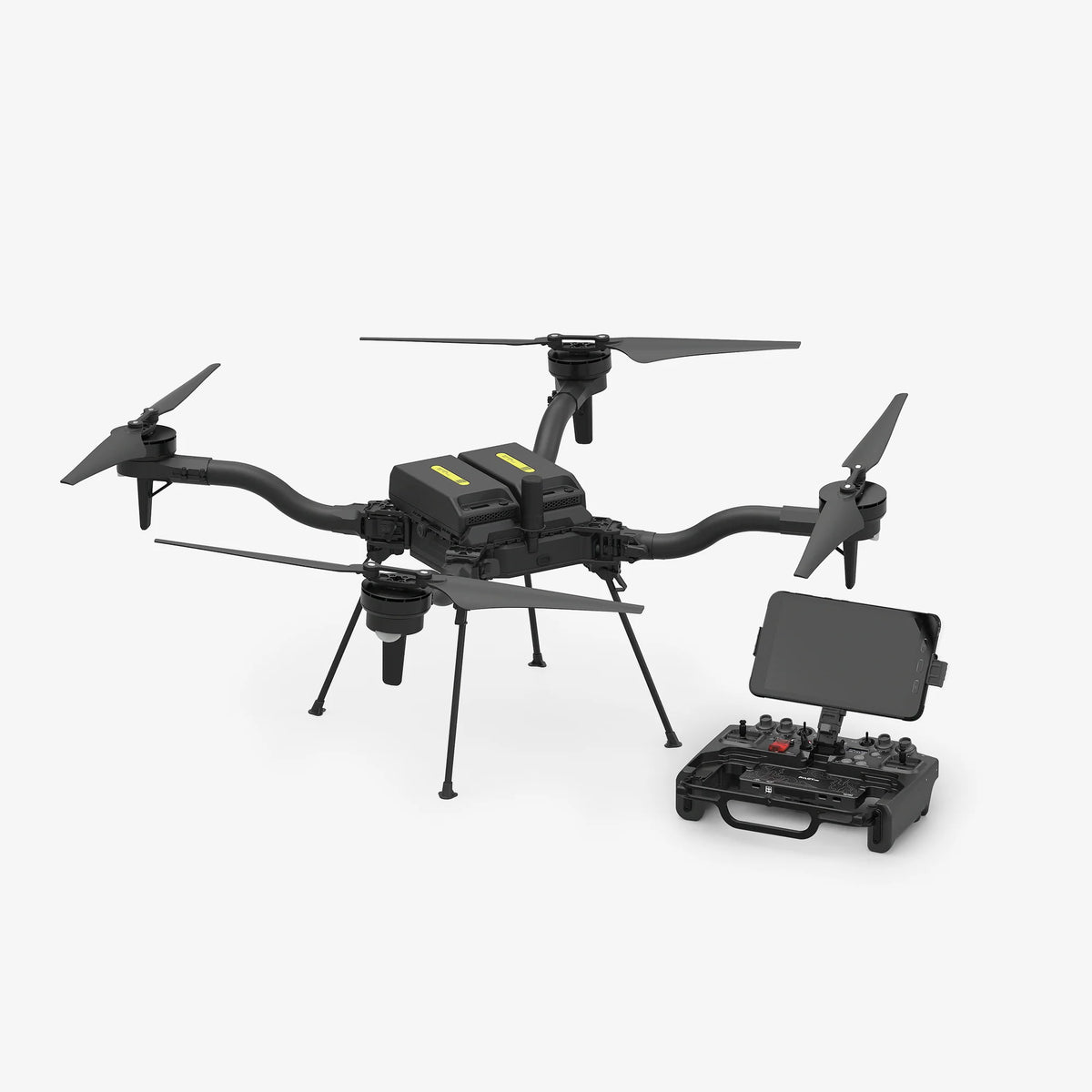

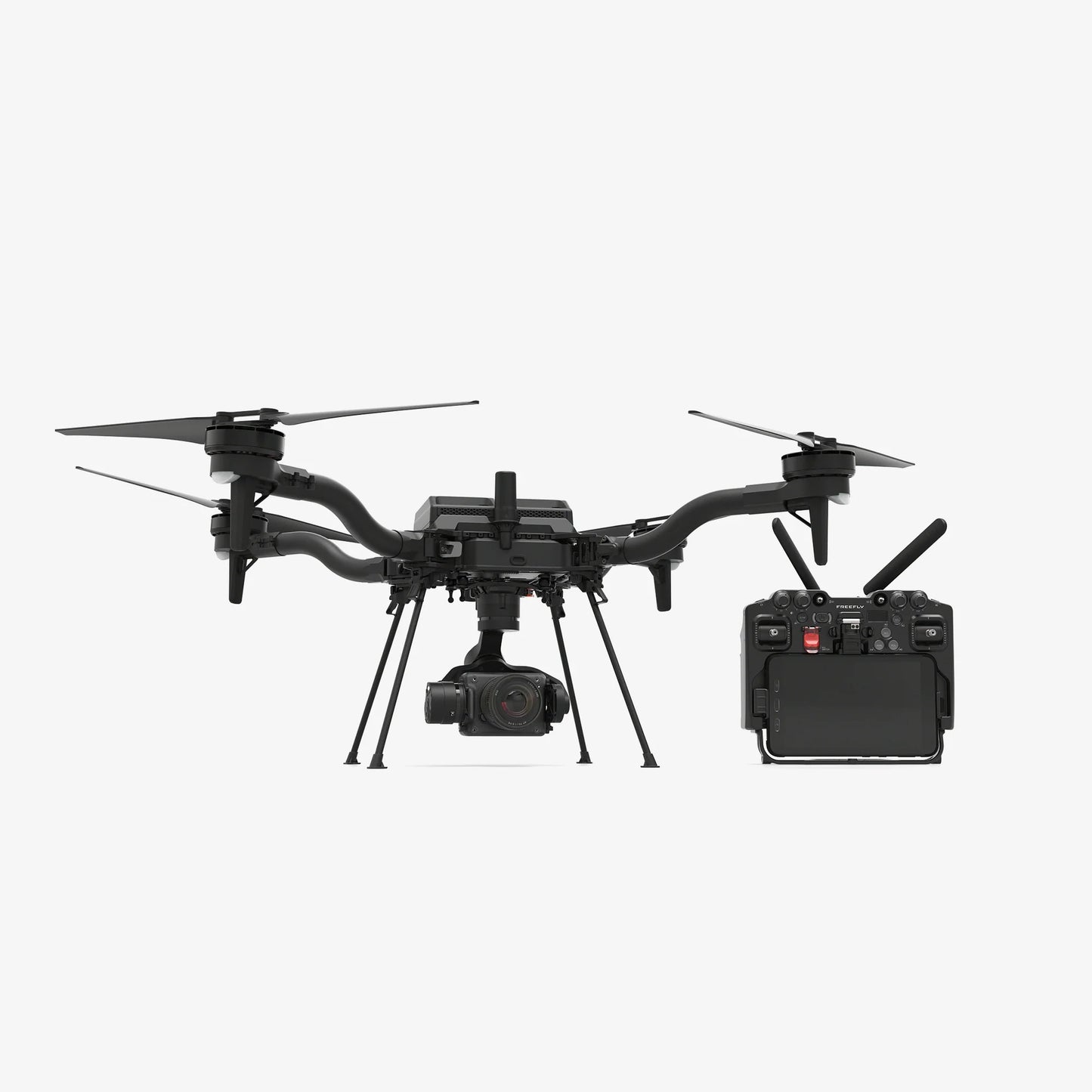

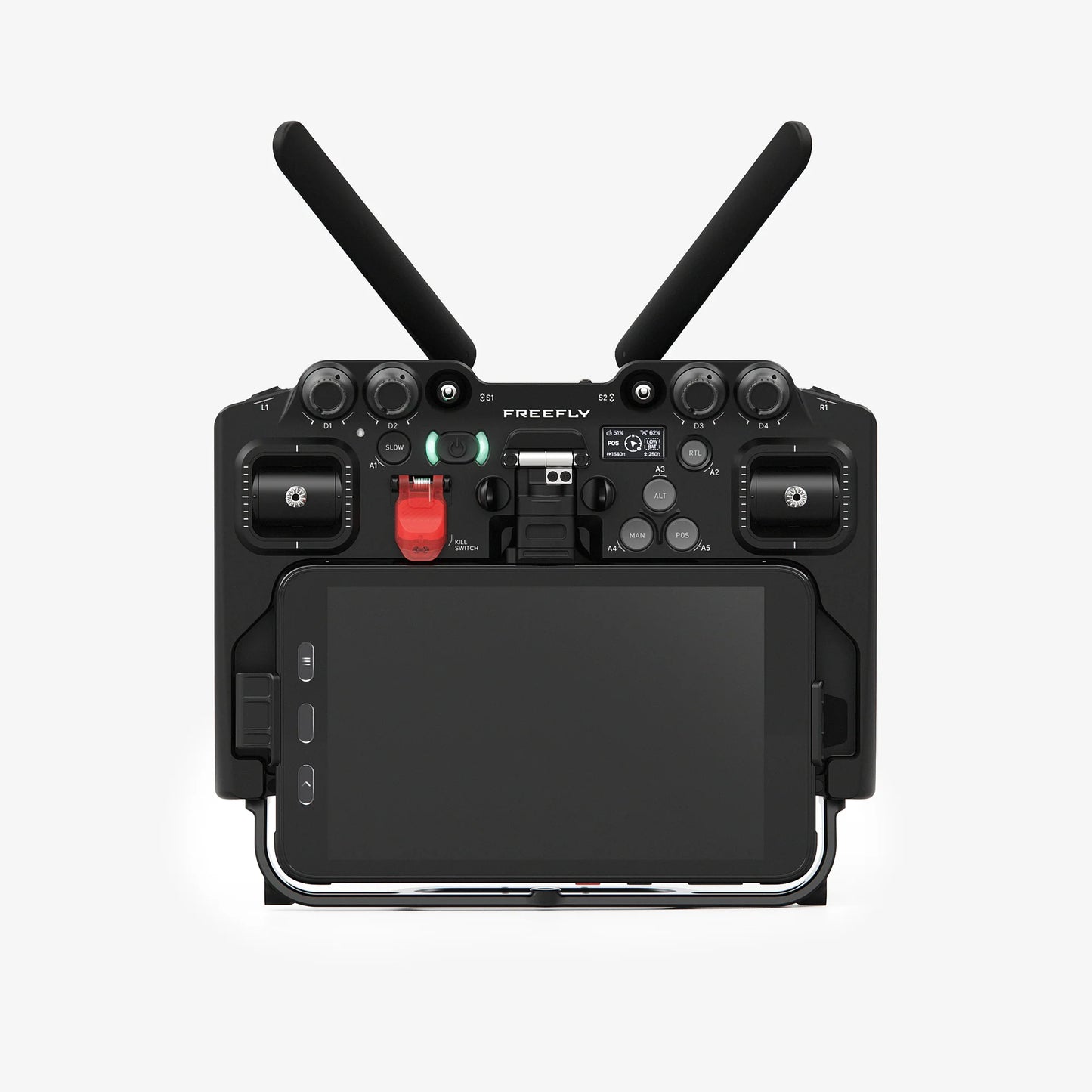

Freefly Pilot Pro controller

• Has internal battery and options for external power
• Robust 2.4ghz radio (non NDAA approved)
• Ships inside Astro Compact Travel Case

Compact Travel Case

• Fits Astro (folded), 1 pair of batteries/chargers and the LR1 Payload
• Telescoping handle and fixed wheels

Notes

• Pilot skill with Manual Mode is required for Emergency Procedures.
• This Astro Max ships with high efficiency props (marked with "2270 CW" or "2270 CCW". Do not mix standard props marked with "2170" with high efficiency props.
• Astro uses two Freefly SL8-Air batteries per flight (not included in this kit). We recommend 4 SL8 batteries and 2 SL8 Fast Chargers to get flying.
• Works with RTK GPS Ground Station, through a user-supplied ground station computer (optional)
• LTE modem works in the United States only.

Tech Specs:

Up to 43 minutes flight time

• 31 minutes with LR1 Payload
• 20 minutes with max payload (3kg)

3kg max payload

• Booms fold up to ½ the diameter
• Pre-installed Astro Isolator for quick-release powered payload attachment
• Alternate payload attachments sold separately:
  • Integrator Vibration Isolator (non-electronic)
  • Freefly Smart Dovetail Kit (hard mount)
  • Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs

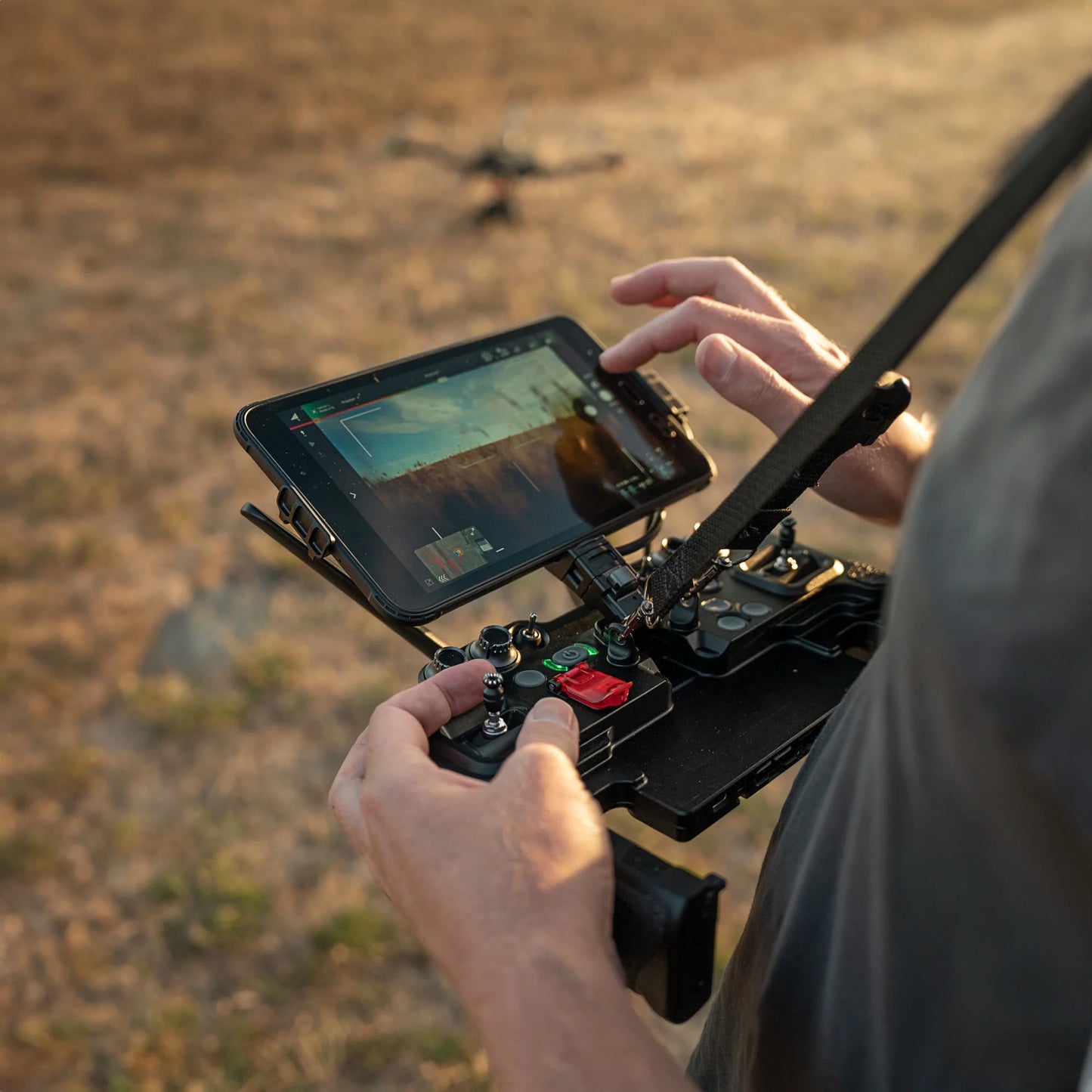

  • Pilot Pro Controller
• High resolution rockers for precise camera / gimbal control

Configured with robust long-range radio hardware:

• Herelink 1.1 Radio (2.4 GHz)

Internal battery with external power inputs to support hot-swapping for maximum uptime

Emergency kill-switch

Discreet physical buttons for all key user actions

Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet

Realtime drone and gimbal speed limits

Custom padded neck strap

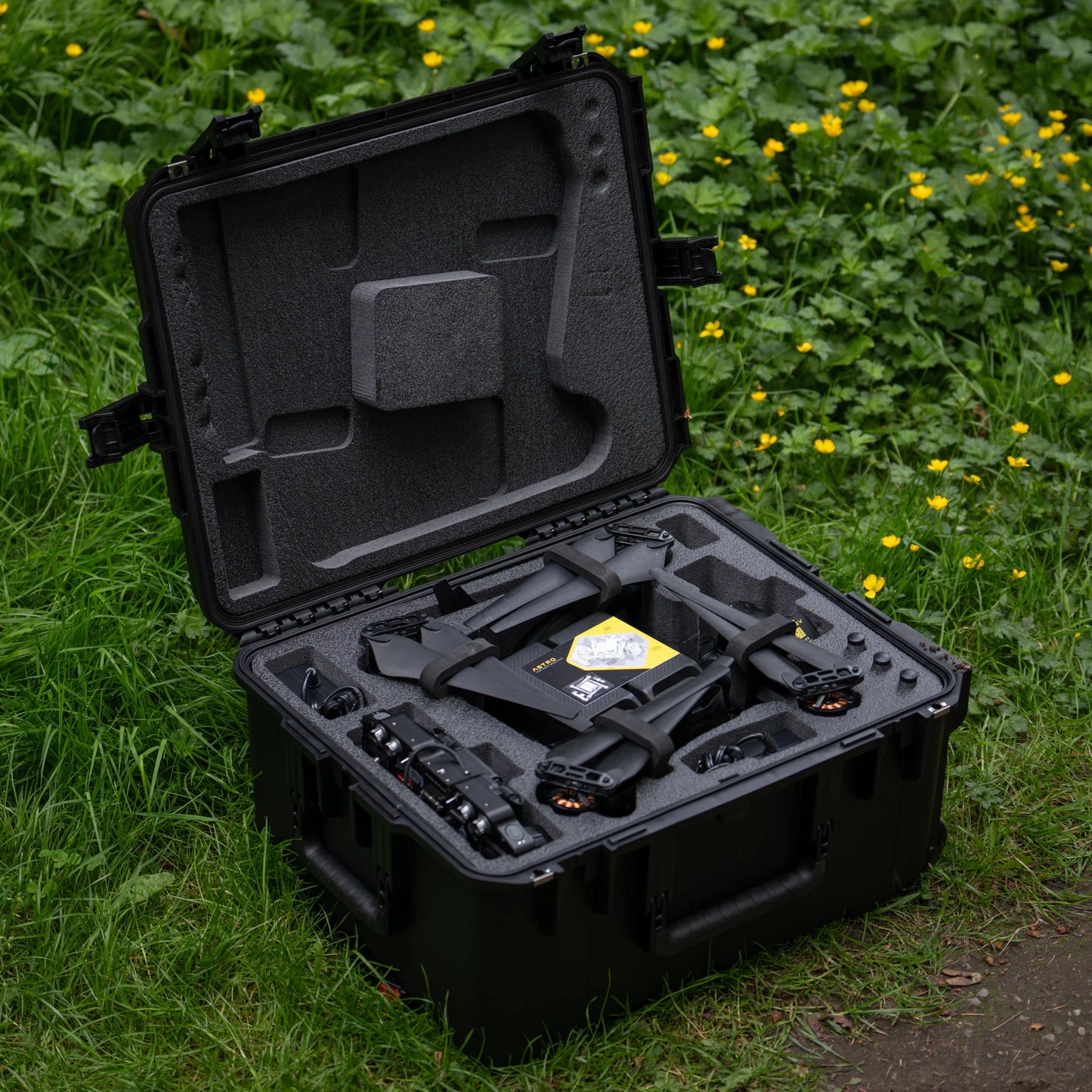

Astro Compact Travel Case

Holds everything needed to fly Astro

• Astro with 2 SL8 batteries* installed and legs folded
• Pilot Pro radio controller
• LR1 Payload (sold separately)
• Pair of SL8 Chargers
• Set of spare props (1 each CW & CCW)

Basic tools

• Custom cut foam, tested to protect against drops from 1 meter
• Submersible and dust tight (MIL-STD 810G)
• Airline checkable
• SKB Rolling Case - 3i-2217-10
• Case dimensions: 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm

Weight of Astro in case:

• As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg
• Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

• SL8-Air Batteries*
• Astro uses two SL8-Air batteries per flight
• Voltage: 21.6 V (6S)
• Capacity: 7.3 Ah, 157 Wh
• Weight: 2.25lbs
• Chemistry: Lithium-Ion
• Auxiliary output: USB-C Power Delivery

Chargers

• SL8 Fast Charger*
• One charger charges one Freefly SL8-Air battery at a time
• Approximate charge time for one SL8-Air battery, from 0%: 90 mins
• Input: 100 / 240 VAC
• Output: 200 Watts
• Supplied with North America power cable (NEMA 1-15 ungrounded, Type A).
• Power cable is replaceable (IEC320 connector).

Designed and Assembled in USA.

*Batteries and chargers needed for flight not included, sold separately
