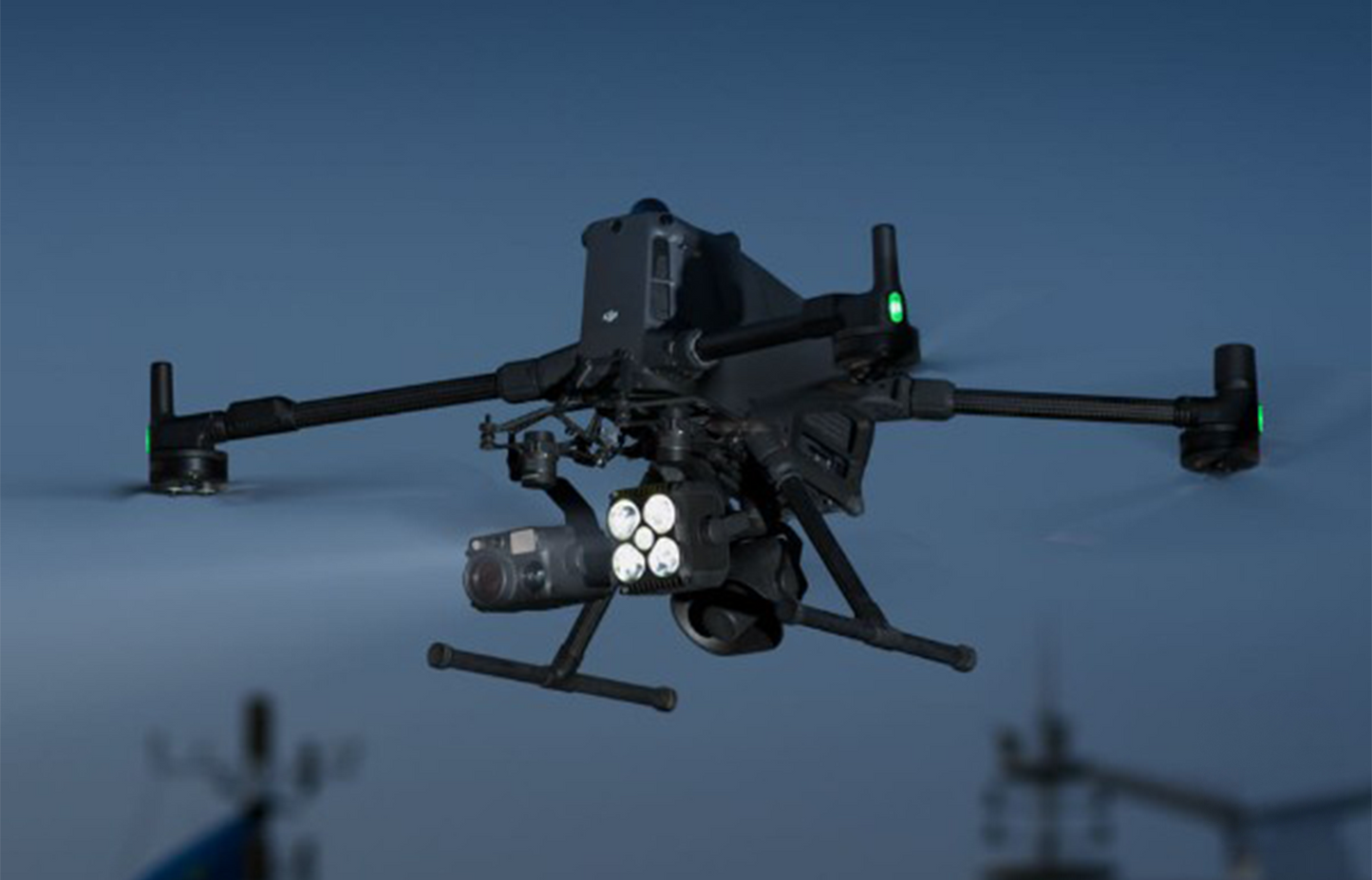

DJI Matrice 400

DJI Matrice 400

DJI Matrice 400, the enterprise flagship drone platform, boasts an impressive 59-minute flight time, a payload capacity of up to 6 kg , and integrated rotating LiDAR and mmWave radar for power-line-level obstacle sensing. It also supports the O4 Enterprise Enhanced Video Transmission and Airborne Relay Video Transmission, ensuring safer handling and easier operations. Combining Smart Detection with visible and thermal imaging, AR projection, ship-based takeoff/landing, and advanced automation, Matrice 400 excels in emergency response, power inspections, mapping, and AEC.

Extended Flight Time, High Speed Performance

Matrice 400's flight capabilities are outstanding, offering up to 59 minutes of forward flight time even with a payload, and up to 53 minutes of hovering duration ^[6]. These capabilities make it a reliable tool for long-duration and continuous operations such as search and rescue, firefighting, and large-scale mapping. It can also avoid large obstacles ^[3] like buildings and mountains at flight speeds of up to 25 m/s.

Multi-Payload, Multi-Scene

Matrice 400’s strong payload capacity allows it to easily meet the demands of a wide range of applications. With a maximum payload capacity of 6 kg ^[2], Matrice 400 supports seamless switching between a single downward gimbal ^[8] and a dual downward gimbal ^[8]. It also features a third gimbal connector on the underside for additional flexibility. The aircraft is equipped with 4 external E-Port V2 ports ^[7], enabling simultaneous mounting of up to 7 payloads.

Aircraft Specs

Max Takeoff Weight

• 15.8 kg

Dimensions

• Unfolded: 980×760×480 mm (L×W×H) (with landing gear)
  Folded: 490×490×480 mm (L×W×H) (with landing gear and gimbal)
   Aircraft carrying case dimensions: 779×363×528 mm (L×W×H)

Max Payload

• 6 kg
  ^{The 6 kg payload is measured at the third gimbal connector under sea level conditions. Payload capacity decreases as altitude increases. For details, refer to the official user manual.}

Propeller Size

• 25 inches

Diagonal Wheelbase

• 1070 mm

Max Ascent Speed

• 10 m/s

Max Descent Speed

• 8 m/s

Max Horizontal Speed (at sea level, no wind)

• 25 m/s

Max Takeoff Altitude

• 7000 m

Max Flight Time (no wind)

• 59 minutes
  ^{Measured with the aircraft flying forward at a constant speed of 10 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.}

Max Hover Time (no wind)

• 53 minutes
  ^{Measured with the aircraft hovering in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual usage time may vary depending on the environment, usage, and firmware version.}

Max Flight Distance (no wind)

• 49 km
  ^{Measured by the aircraft flying forward at a constant speed of 17 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.}

Max Wind Speed Resistance

• 12 m/s
  ^{Max wind speed resistance during takeoff and landing.}
