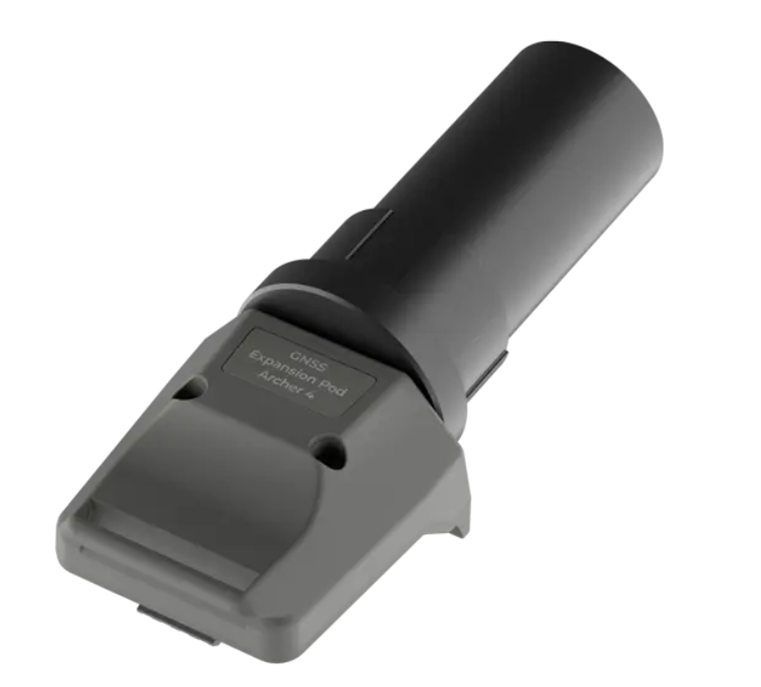

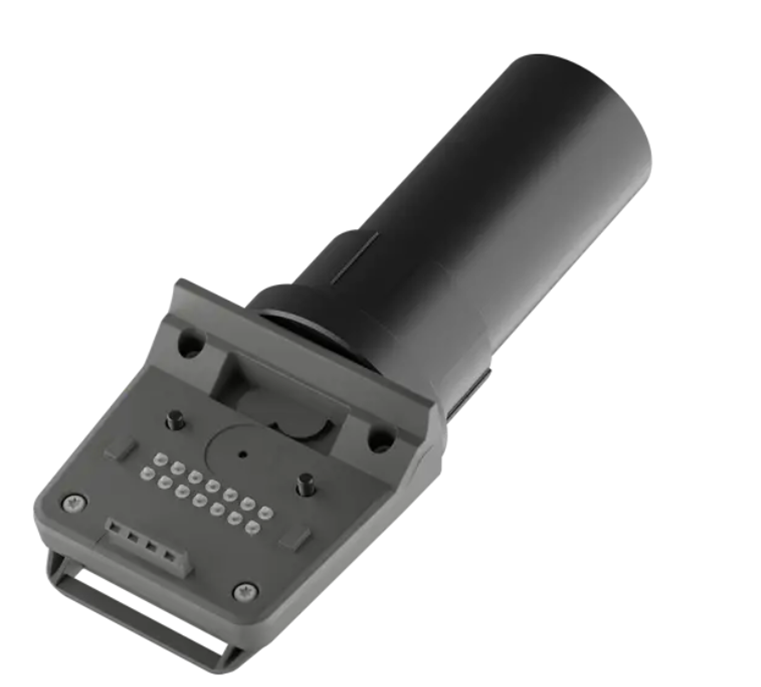

Juniper Systems Archer 4 GNSS Expansion Pod

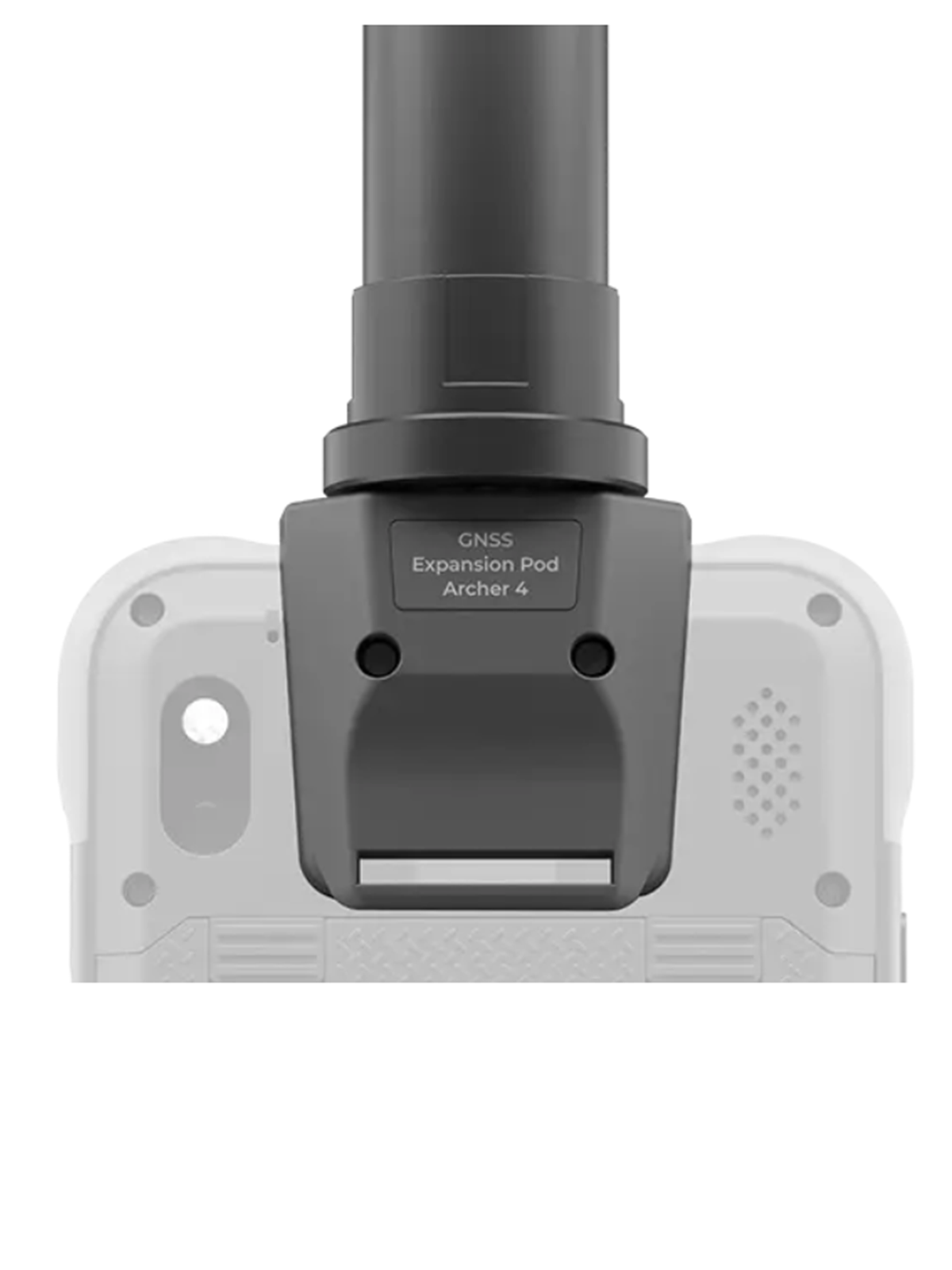

RTK-Enabled GNSS Pod for the Archer 4: Transform your Archer 4 into a compact, high-accuracy mapping solution. This device-powered, multi-frequency GNSS Receiver delivers sub-meter accuracy with SBAS and centimeter-level accuracy when connected to an RTK correction network. Its lightweight design supports convenient one-handed field operation

Archer 4 sold separately. Centimeter-level RTK results require Juniper Connect or compatible software and access to an RTK correction network.

 Compatible with: Compatible with the Archer 4 only. Juniper Connect (formerly Archer Connect)  software provides configuration, communication setup, and receiver settings.

RECEIVER Capabilities:

• Signals: GPS: LIC/A, L2C, GLONASS: LIOF, L2OF, GALILEO: E1B/C, E5b, BeiDou: B1I, B21, QZSS: LIC/A, L2C
• Channels: 184
• Corrections: SBAS', SLAS, RTK
• Update Rate: 1Hz, 2Hz, 5Hz,10Hz

ACCURACY

• Sub-meter to RTK2
• Horizontal position accuracy (RMS) (SBAS: <1.0 m, RTK: 1.5 cm +lppm)
• Cold Start: <30 seconds (no almanac)

JUNIPER RUGGED™

• IP68 waterproof & dustproof
• Operating & Storage Temperature(°C) :- 20/60

RECEIVER PROTOCOLS

• Data I/O Protocol: NMEA-0183 v4.11, UBX binary (proprietary)
