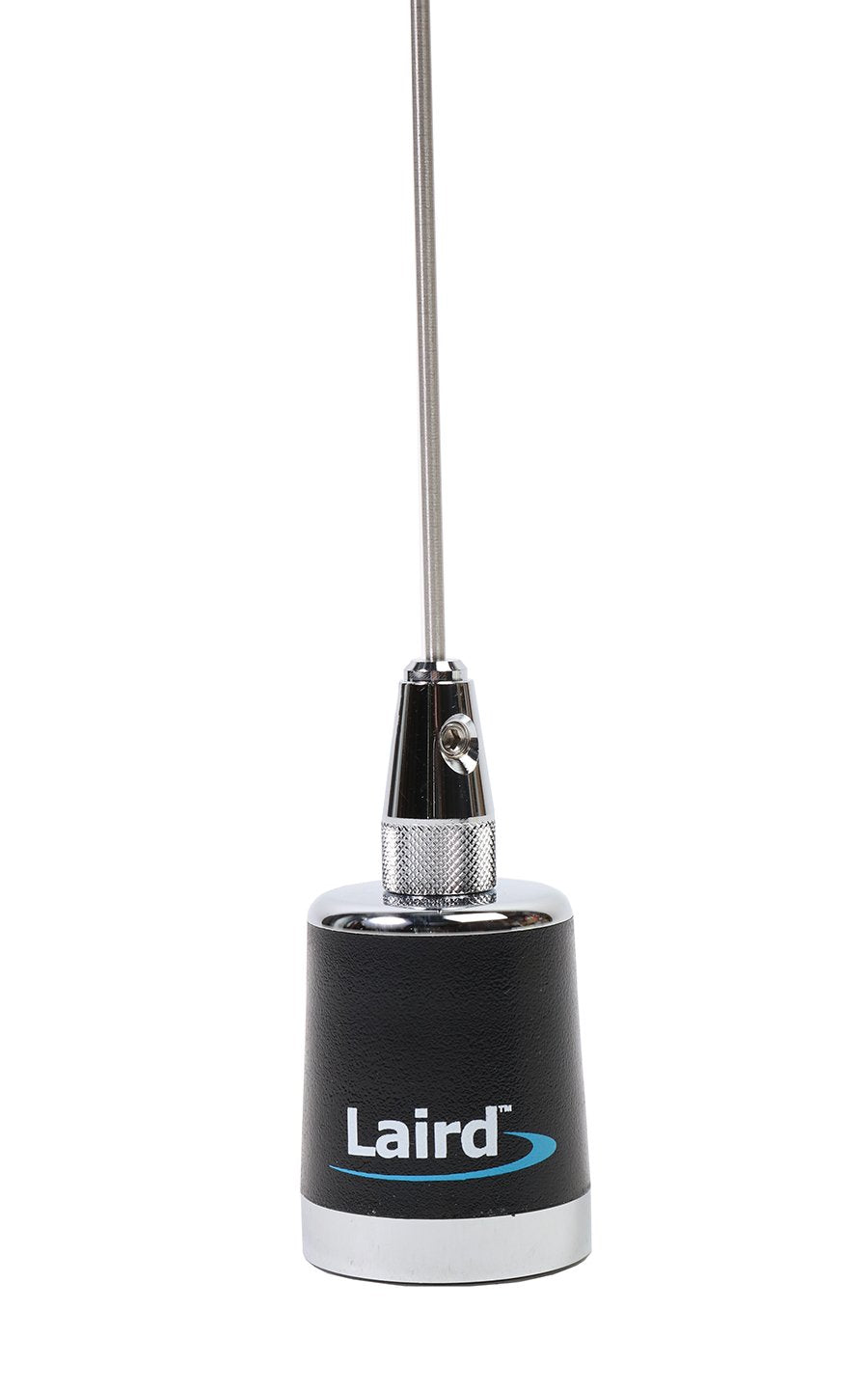

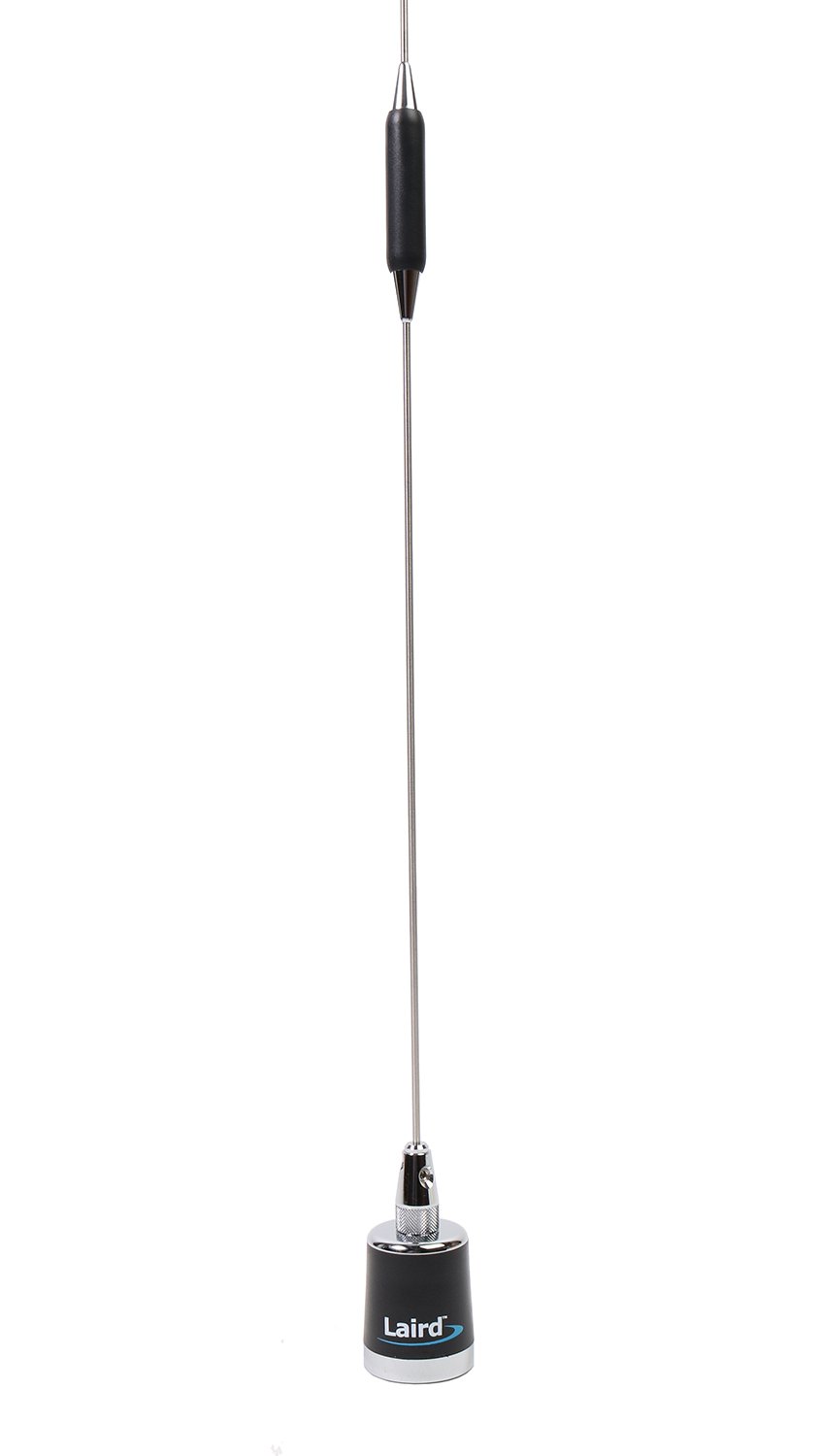

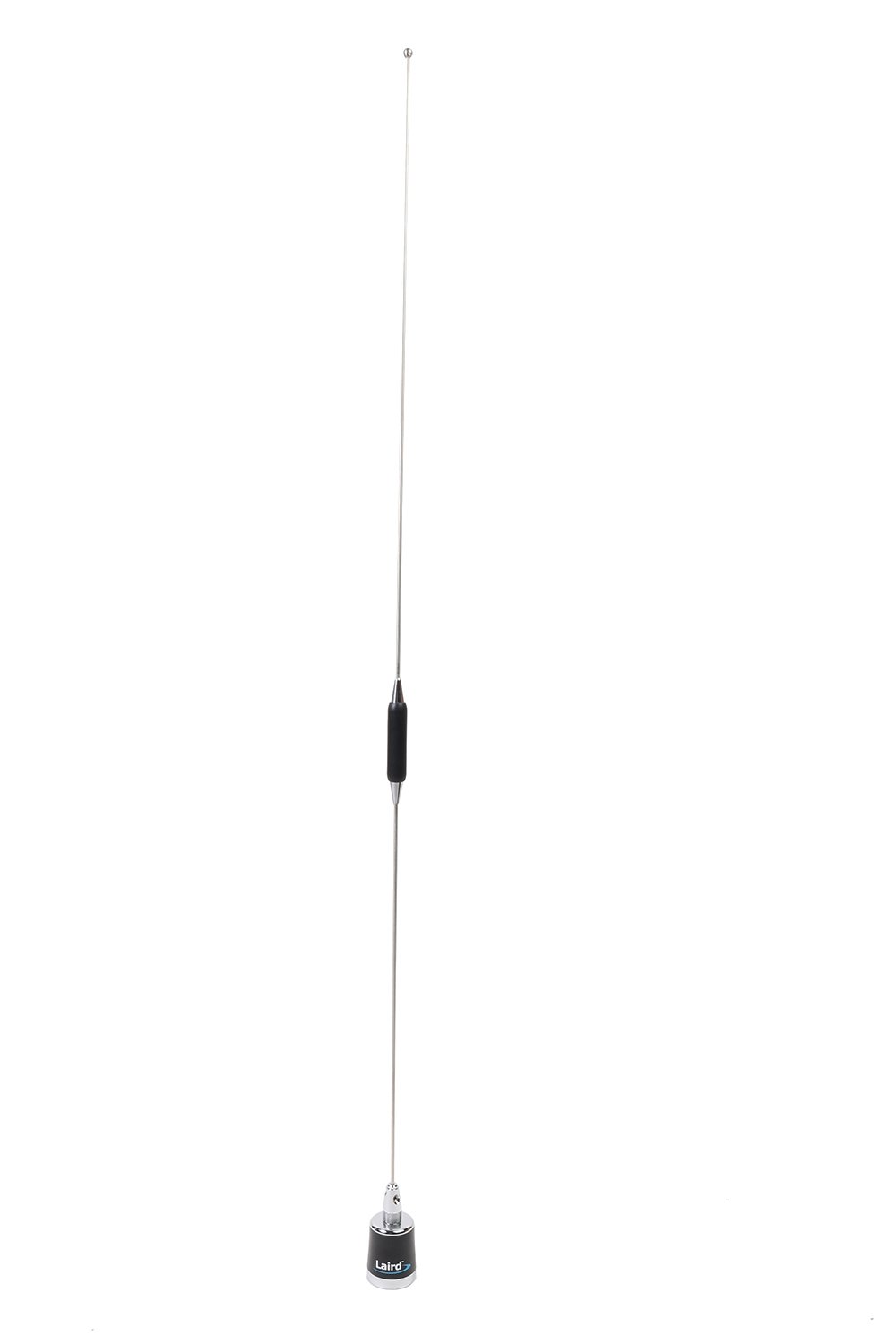

Antenex 5dB Gain Radio Antenna
Antenex 5dB Gain Radio Antenna
Regular price
$142.00
Regular price
Sale price
$142.00
Unit price
per
Quick Overview
This Laird Technologies mobile antenna is designed and built for demanding applications. With low loss coil form you get dimensional and frequency stability. The ABS material is injection molded around solid brass inserts to create a virtually indestructible housing that is virtually leak proof. Antenex.
Share this product
Laird Technologies 5db Gain Mobile Whip Antenna features:
- With low loss coil form you get dimensional and frequency stability.
- The ABS material is injection molded around solid brass inserts to create a virtually indestructible housing that is virtually leak proof.
- Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring.
- All silver soldered joints ensure electrically and mechanically secure connections.
- The 5/8 wave over 5/8 wave base loaded closed coil collinear antenna.
- 450-470 MHz 5dB
- Closed Coil
- Long tuning ferrule allows for greater freedomin frequency adjustment without trimming
- High performance mobile antenna operates on a No Ground plane (NGP) requirement.
- Straight Stainless steel corona ball stays on the rod – no dissimilar metal interaction associated with competitor designs.
- Easy Installation /w NMO mountable.
- 100% tested on a network analyzer.
- Dimension (Height - inches) 32.00. Dimension (Width - inches) 1.44
