MapStar TruAngle II

MapStar TruAngle II

SKU:7006015

Special Order

Regular price $1,995.00
Regular price Sale price $1,995.00
Sale Sold out
Quick Overview

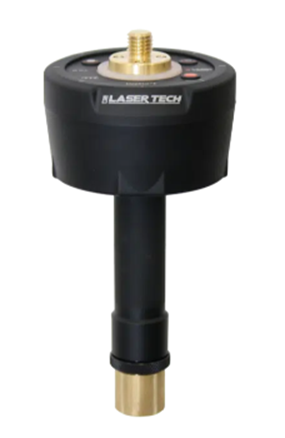

The MapStar® TruAngle II® encoder precisely calculates a turned horizontal angle that can be referenced to any desired point or direction.

Special Order - ships in 2 -3 Weeks

View full details

Next Generation Angle Encoder for Interference-Free 3D Measurements

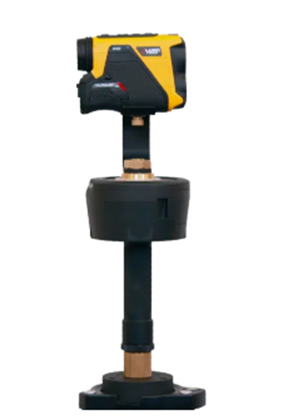

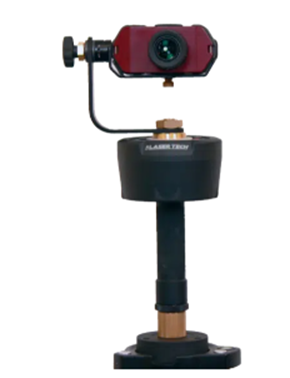

Our next-generation MapStar TruAngle II introduces a new intuitive user interface to complement our achievements in advanced performance and stronger durability, for an all-new and feedback-driven user experience. Precisely calculate a turned horizontal angle that can be referenced to any desired point or direction. This survey-pole-mounted angle encoder works with TruPulse® products to provide high-accuracy X, Y, and Z coordinates for a complete 3D mapping system immune to local magnetic interference.

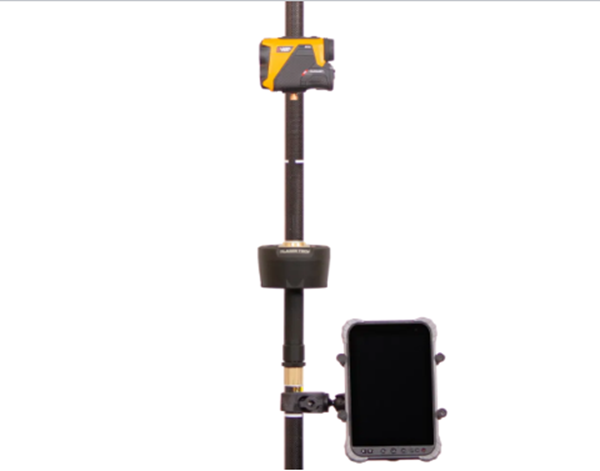

Add your preferred GNSS receiver to map assets with a TruPulse rangefinder. Introduce the Distance-Angle workflow to your toolkit and experience a new world of offset positioning possibilities; map assets within a clear line of sight without occupying their physical location, avoid dangerous terrain and private property, reduce traverse time, and overcome signal issues.

Use the TruAngle II BLE communication capabilities to output your data onto preferred mobile devices and data collection solutions.



Product Specifications:

Specifications

Horizontal Angle Accuracy           +/ 0.1°

Horizontal Angle Range     0° to 359.99°

Horizontal Angle Resolution         0.01°

Tilt Accuracy           Maintains +/- 0.1° accuracy at up to +/-10° tilt*

*Nominal Calibration Angle Tolerance is 95% level of confidence under normal test conditions at a temperature of 23º C and Barometric Pressure of 101kPa

Wireless Communication

Bluetooth 5.3 & Thread (802.15.4) – Bluetooth Low Energy (LE): Android & iOS compatible.

Temperature Range: -20° to +50° C (-4° to +122° F)

Li-ion Rechargeable, Replaceable/Removable; 12hrs Continuous Use

Weather proof IP56 rating.

Mount: 5/8″ threads: Top Male, Bottom Female

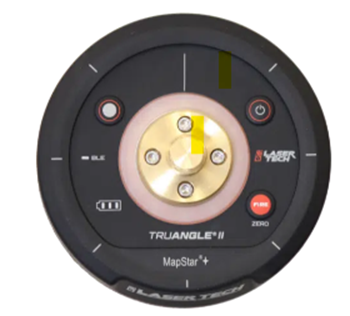

Level Aid: utilizes Ultra bright LEDs (bubble level) to indicate when the unit is level or over the level limit.

Size

Total Height240.3 mm (9.46 in) Mounted Height 225.0 mm (8.86 in) Width / Diameter 114.3 mm (4.5)

Weight

1,270 g (2.8 lbs)
