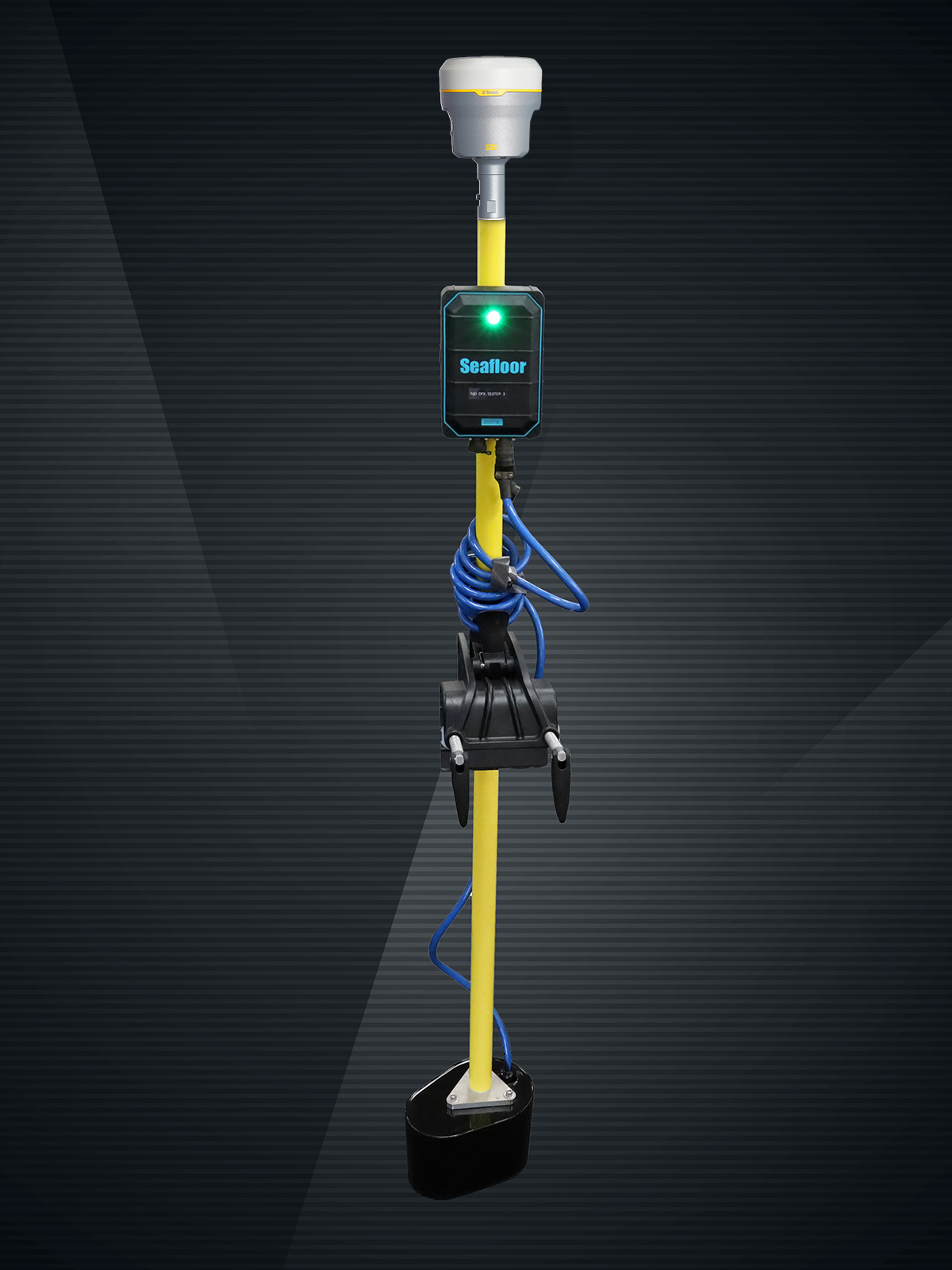

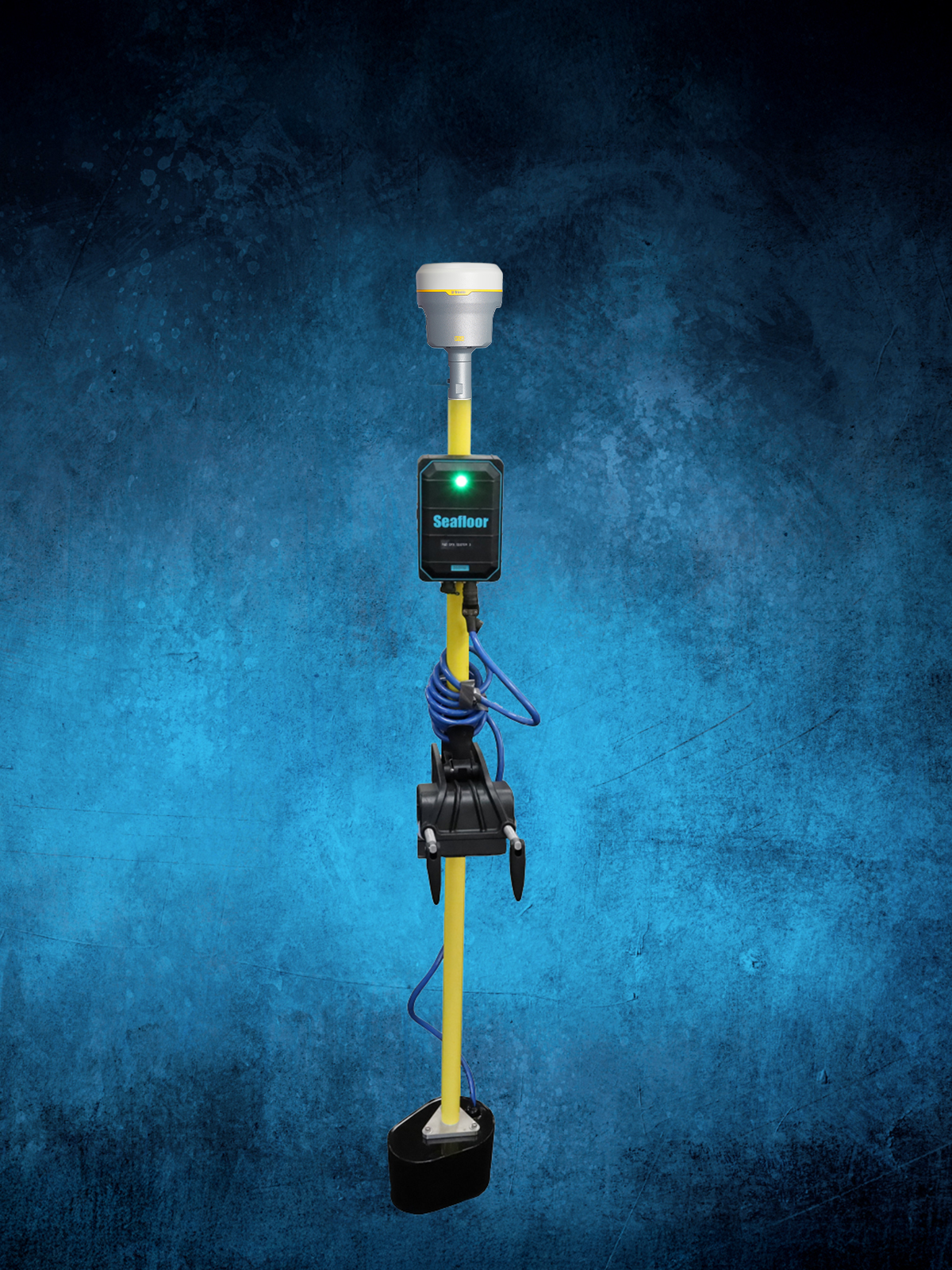

Hydrolite SF200-9 Single Frequency Echosounder

The Hydrolite SF200-9™ is the latest version of our iconic single beam echosounder. Designed for simplicity and reliability, it features auto-ranging and universal compatibility with most survey equipment brands. The single beam echosounder brings back the straightforward operation that traditional survey professionals know and prefer.

Specifications:

Hardware: Hydrolite SF200-9 Boat Mount / Pole Kit

Depth Accuracy: 1cm

Operating Range: 0.15m - 100m

Frequency: 200KHz

Ping Rate: 1Hz

Transducer: 1lbs(0.45kg), 6.9x4.Sx3.4" (175.26x 114.3x 86.36mm)

Transducer Top-Side:  1lbs (0.45kg), Sx2.75x3.75" (127x69.85x95.25mm)

Transom Mount: 4lbs (1.81kg), 11x5x8" (279x127x203.2mm)

Power: Internal Battery 14.4V, 45 Wh

Output Formats: NMEA0183, ASCII, ODOM, ATLAS, Sonarmite

I/O Connections: Serial(DB9),Bluetooth

GPS Compatibility: Trimble, Leica, Topcon, Sokkia,
Epoch, Carlson, HYPACK, QPS, EIVA, PDS 2000.
