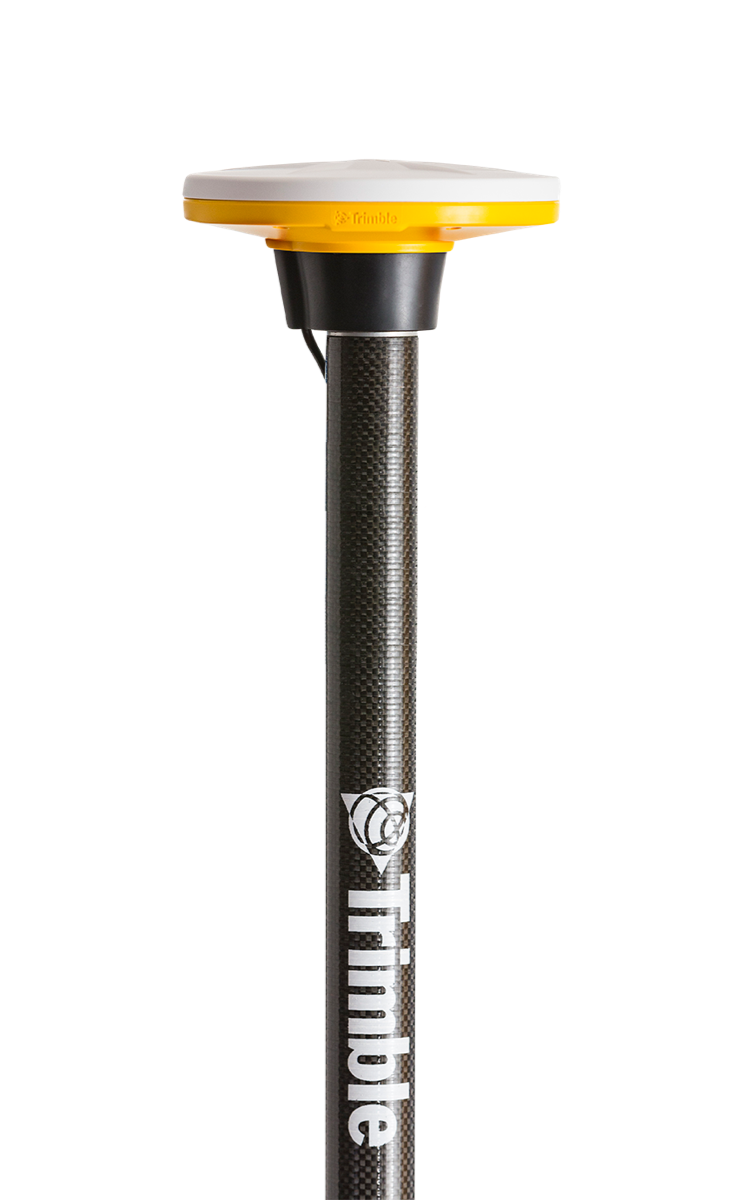

Trimble DA2 Catalyst GNSS Receiver

The Trimble DA2 GNSS receiver -- the next generation receiver and antenna for the Trimble® Catalyst™ positioning service -- allows high precision positioning smartphones and tablets, and is now powered with Trimble ProPoint GNSS technology. Requires a subscription to the Catalyst Positioning service.

Works with devices powered by:

• Android 5.0 and higher
• iOS & iPadOS 13.0 and higher

In the Box:

• Trimble DA2 GNSS receiver
• USB data cable (Micro-B to USB-A, 30 cm)
• Accessory kit (PN 120523)
• Quick Start Guide & Warranty Card

Professional Performance

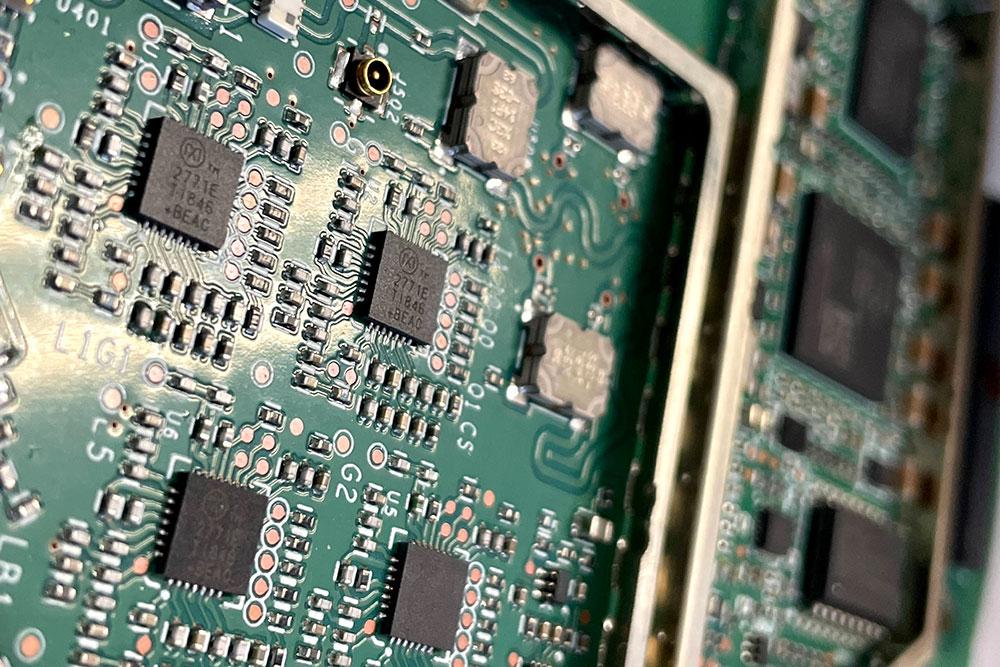

• Custom engineered and powered by Trimble ProPoint™ GNSS technology.
• Multi-band support for all global and regional GNSS systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC/IRNSS, SBAS, MSS/L-Band.
• Excellent phase-center stability and robust multi-path rejection characteristics in difficult GNSS environments.

Lightweight & Convenient

• Trimble's smallest and lightest RTK-capable GNSS receiver: at only 330g (<12 oz), DA2 is small enough to carry anywhere.
• Simple Bluetooth® connection to Android and iOS devices.
• Powered in the field using an off-the-shelf USB power bank or any USB-C equipped field device.
• Multiple mounting options, including standard 5/8x11 sized survey accessories, or using Trimble's custom designed push-fit system.

Simply Precise Positioning

• DA2 is custom-designed for the Trimble Catalyst positioning service, simplifying your access to precise positioning workflows.
• Compatible with any of the Catalyst service subscription levels, one receiver can be used for every workflow: 60 cm, 30 cm, 10 cm, 1 cm. You choose the service level that matches the job, and Catalyst does the rest.
• Trimble Corrections Hub delivers seamless correction services worldwide, online or offline, for all Catalyst subscribers.
