Trimble TSC7 V2 Data Collector with Trimble Access | Used
Trimble TSC7 V2 Data Collector with Trimble Access | Used
In stock
The Trimble TSC7 V2 is used and in good condition. The TSC7 also has Trimble Access installed and includes the most current version of Trimble Access available as of the date of purchase. The unit has been serviced and inspected by a Trimble Certified Technician and is fully functional. Includes an AllTerra Central 30 Day Hardware Warranty. Trimble TSC7 V2 Data Collector Includes:
Share this product

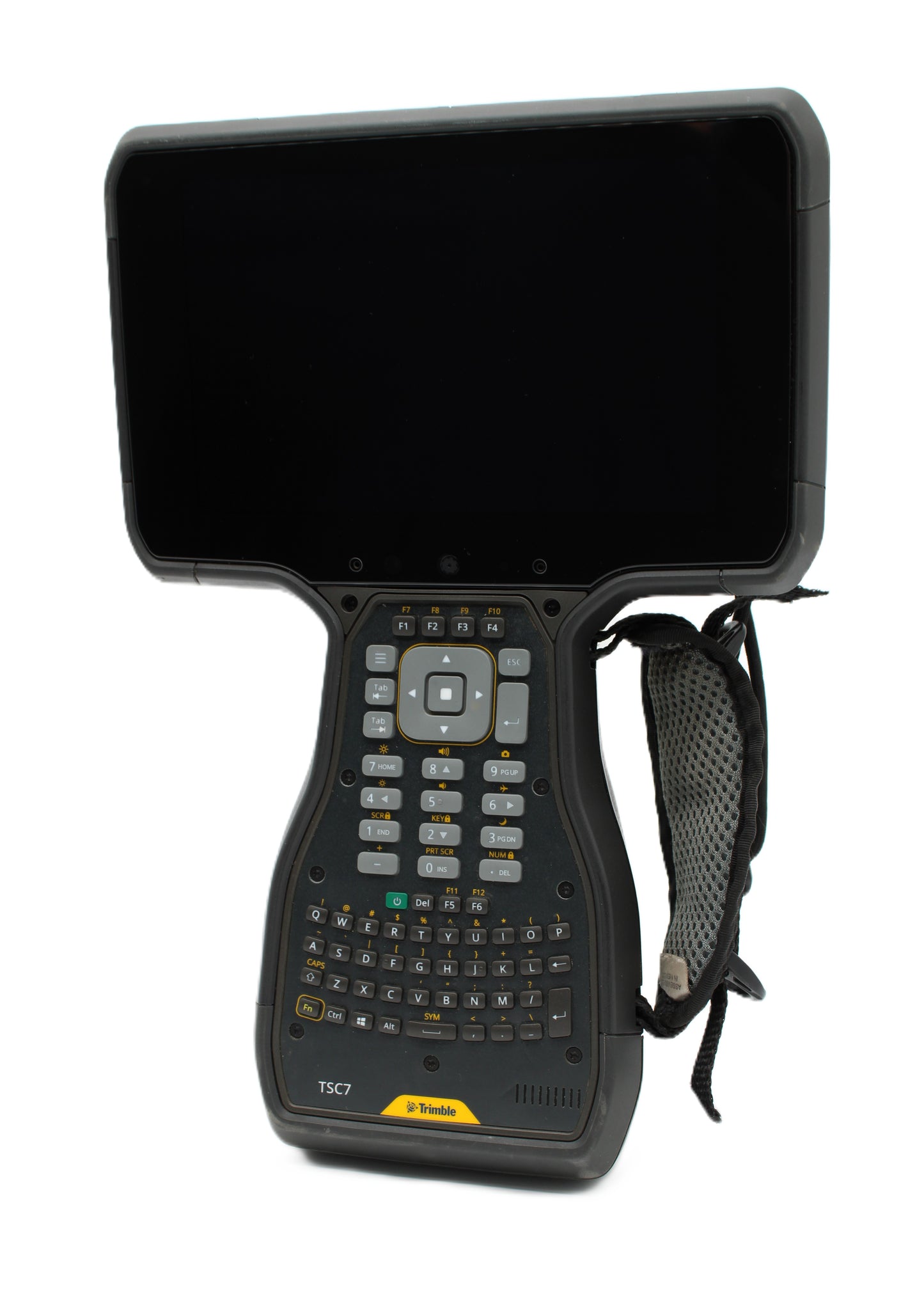

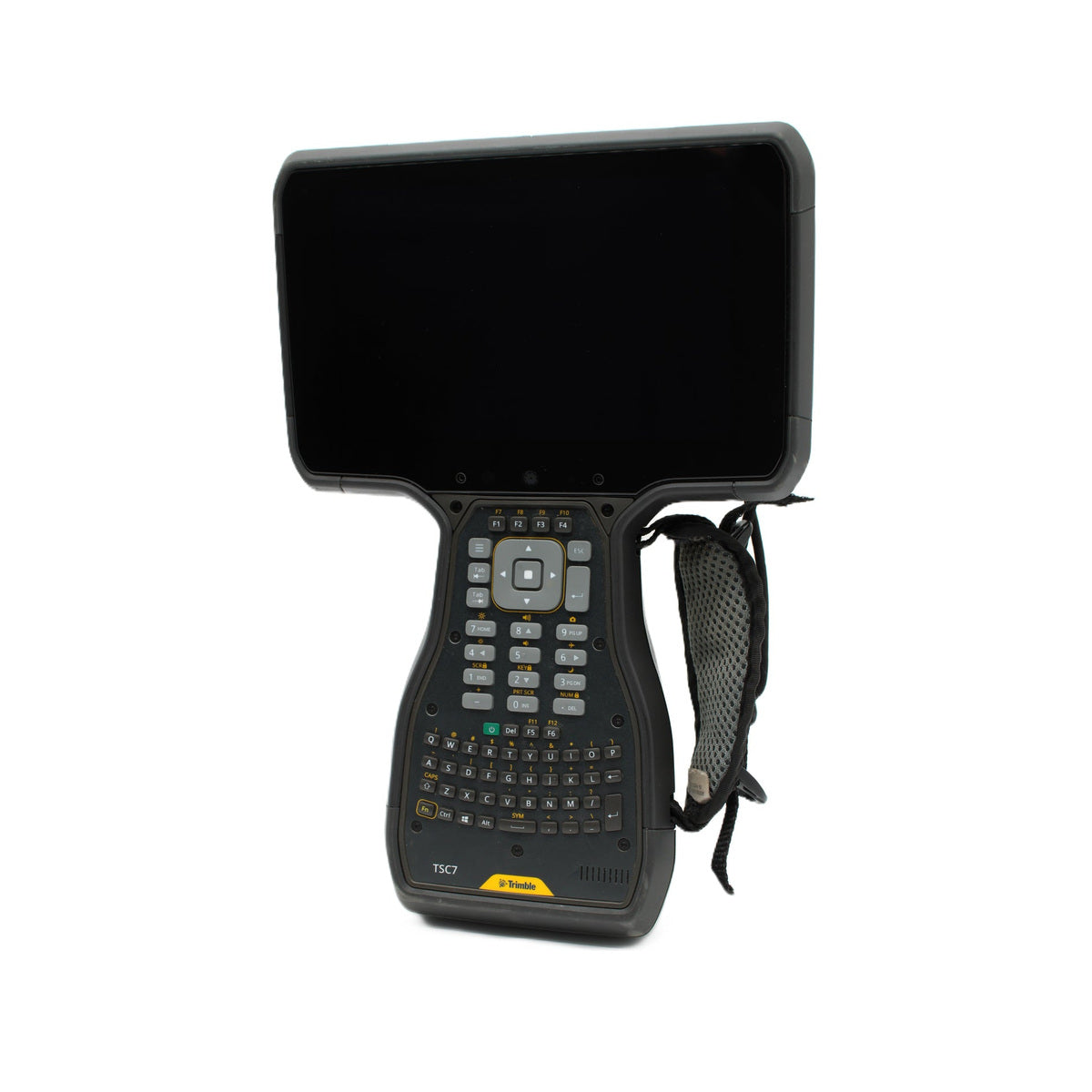

Introducing the Trimble® TSC7 V2, the rugged, ergonomic controller that delivers the power and flexibility of Microsoft® Windows® 10 Pro and Trimble Access™ software on a seven-inch touch screen. This powerful combination unleashes unlimited potential for your workflow. Redesigned from the ground up, the Trimble® TSC7 controller with Trimble Access™ field software combines the power of a tablet, laptop and survey-rugged design into one device. Bringing the latest in field technology, this powerful combination of hardware and software unleashes a competitive advantage for how you survey in the field.
Rugged: Military-spec design engineered to survive drops, dust, and immersion. Capable: Intel processor with 8 GB RAM handles heavy project files and 3D data. Versatile: Interchangeable EMPOWER modules including a long-range radio.
Trimble TSC7 V2 features at a glance
- Optimized for Trimble Access – Purpose-built for Trimble Access field software (2017.2x and 2018 or later)
- Large 7-inch Display – 1280 x 800 sunlight-readable, 800-nit, Gorilla® Glass 3.0 capacitive multi-touch with stylus, touch, and glove mode
- Secure Windows 10 OS – Runs Microsoft® Office, web browsers, and other third-party 64-bit applications
- EMPOWER Module Support – Two module bays for user-interchangeable modules, including a long-range radio
- Military-Spec Rugged Design – MIL-STD-810G tested with hot-swappable batteries and integrated drop bumpers
SPECIFICATIONS:
Processor: Intel Apollo Lake N4200, 64-bit quad-core
Memory: 8 GB RAM (LPDDR4)
Storage: 128 GB eMMC
Expansion: SDXC card up to 512 GB
Display: 7″ 1280 x 800, 800-nit sunlight readable, Gorilla® Glass 3.0, 10-point capacitive multi-touch
Operating System: Windows® 10 (64-bit)
Keyboard: QWERTY backlit, numeric key block, Fn keys
Batteries: 2 x 3100 mAh, removable, hot-swappable with charge LED
Battery Life: 8 hours typical
Charging Time: Full charge 3.5 hours (80% fast-charge 1¾ hours)
Cameras: Rear 8 MP autofocus with flash, front 2 MP fixed-focus
WWAN: Worldwide LTE, 3G compatible, AT&T and Verizon certified (MicroSIM)
Wi-Fi: 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
Bluetooth: 5.1
GNSS: Integrated Sierra Wireless EM74xx, 2–4 m accuracy, GPS/GLONASS/BeiDou/Galileo
I/O: Charger/DC power-in, USB 3.1 Gen 1 Type A, serial RS232 DB-9
Security: TPM 2.0
Ingress Protection: IP68 (dust and immersion)
Weight: 1.42 kg (3.12 lb)
Introducing the Trimble® TSC7 V2, the rugged, ergonomic controller that delivers the power and flexibility of Microsoft® Windows® 10 Pro and Trimble Access™ software on a seven-inch touch screen. This powerful combination unleashes unlimited potential for your workflow. Redesigned from the ground up, the Trimble® TSC7 controller with Trimble Access™ field software combines the power of a tablet, laptop and survey-rugged design into one device. Bringing the latest in field technology, this powerful combination of hardware and software unleashes a competitive advantage for how you survey in the field.
Rugged: Military-spec design engineered to survive drops, dust, and immersion. Capable: Intel processor with 8 GB RAM handles heavy project files and 3D data. Versatile: Interchangeable EMPOWER modules including a long-range radio.
Trimble TSC7 V2 features at a glance
- Optimized for Trimble Access – Purpose-built for Trimble Access field software (2017.2x and 2018 or later)
- Large 7-inch Display – 1280 x 800 sunlight-readable, 800-nit, Gorilla® Glass 3.0 capacitive multi-touch with stylus, touch, and glove mode
- Secure Windows 10 OS – Runs Microsoft® Office, web browsers, and other third-party 64-bit applications
- EMPOWER Module Support – Two module bays for user-interchangeable modules, including a long-range radio
- Military-Spec Rugged Design – MIL-STD-810G tested with hot-swappable batteries and integrated drop bumpers
SPECIFICATIONS:
Processor: Intel Apollo Lake N4200, 64-bit quad-core
Memory: 8 GB RAM (LPDDR4)
Storage: 128 GB eMMC
Expansion: SDXC card up to 512 GB
Display: 7″ 1280 x 800, 800-nit sunlight readable, Gorilla® Glass 3.0, 10-point capacitive multi-touch
Operating System: Windows® 10 (64-bit)
Keyboard: QWERTY backlit, numeric key block, Fn keys
Batteries: 2 x 3100 mAh, removable, hot-swappable with charge LED
Battery Life: 8 hours typical
Charging Time: Full charge 3.5 hours (80% fast-charge 1¾ hours)
Cameras: Rear 8 MP autofocus with flash, front 2 MP fixed-focus
WWAN: Worldwide LTE, 3G compatible, AT&T and Verizon certified (MicroSIM)
Wi-Fi: 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
Bluetooth: 5.1
GNSS: Integrated Sierra Wireless EM74xx, 2–4 m accuracy, GPS/GLONASS/BeiDou/Galileo
I/O: Charger/DC power-in, USB 3.1 Gen 1 Type A, serial RS232 DB-9
Security: TPM 2.0
Ingress Protection: IP68 (dust and immersion)
Weight: 1.42 kg (3.12 lb)
