Prisms

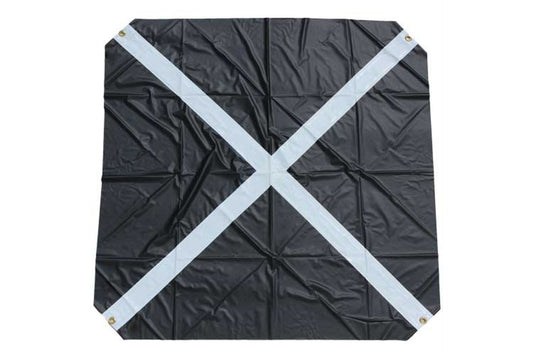

For aerial mapping and surveying jobs, Presco Aerial Paneling can be easily placed along a predetermined perimeter of an area to be photographed. These reusable, 4 Mil PVC panels save time and labor costs in your aerial project. Material: PVCGauge: 4 MilAerial Paneling: 12" X 300'Size: 1 rollMaterial/Ink Color: White/Black

Trimble 60mm Reflective Retro Target (10 pack).

Adjustable 6 inch (152 cm) Black and White tilting target, for affixing to pole top and used in multiple survey jobs. Contrasting 6″ (152mm) Black and White pattern Matte non-glare target material Adjustable tilting axis Anodized aluminum yoke and target plate Axis height 135mm 5/8-11 threaded base Weight 0.90 lbs, 0.41kg

The Standard Prism Assembly features a copper-coated, canister-type 62 mm prism, simple but proven locking and 5.5 x 7 inch target It’s waterproof, has a M20 universal mounting thread and the tilting axis height is 115 mm Prism can be mounted in either 0 or -30 mm offset positions Target Colors are Flo Orange with Black Weighs 1.35 lb (0.62 kg)

Pack of 10 Trimble adhesive black & white checker targets. Only suitable for manual aiming.

Contains 5 pieces of 60*60mm reflective foil target stickers with wider sighting marks. Only suitable for manual aiming. Prism Constant: 0mm.

The Trimble Traverse Kit contains case, traverse prism, prism base with level and tribrach with no optical plummet. The prism base with level has a lever arm with bottom of notch measurement that enables accurate height measurements and removes the need to remeasure when pairing with an S Series instrument.

Easy-to-use self-adhesive 150 x 200 mm survey target, which can be fixed to measuring points. Ideal for monitoring work where you have to leave targets in position over long periods. 10 Pack Contrasting 6″ (152mm) Black and White pattern Matte non-glare target material Material is 3M 3.2-mil vinyl films with a pressure-sensitive adhesive and air release channels. Weather resistant and UV stable Space to mark target ID Adhesive backed Package weight: 0.25 lbs (0.11 kg)

30mm Reflective Retro Target (10 pack).

This -30 mm offset prism holder is constructed from durable aluminum and sealed with a rugged corrosion-proof electrostatic powder paint coating Includes copper-coated (#6411-02-BLK) prism Flo Orange Weighs 1.50 lb (0.68 kg)

Target, Reflective, 1x1, yellow.

Here’s a versatile prism system in a small package The assembly features a 25 mm copper-coated prism, for fog prevention, a tilting holder, with friction axis, zero or -30 mm offset Powder painted Fluorescent Orange with Fluorescent Yellow targets Includes a 40-min adjustable circular center-mounted vial Assembly can mounted on a Prism pole or tribrach at three heights: 70 mm, 100 mm, 115 mm, or can be hand-held using the plumb bob bracket or with S-hook for quick attachment to plumb bob Also included a point for stake-out work, and a system bag with belt loop Weighs 0.34 lb (0.15 kg)

Features ‘site cones’ that improve vertical angle pointing — the site cones double as tilting-axis lock knobs The adjustable 40-min vial is mounted on the front side and is easy to see and simple to adjust This mini-prism is a zero-offset if you reverse the prism. Includes carrying case Flo Orange Weighs 0.30 lb (0.14 kg)

Maintain target lock with confidence using Trimble Active Tracking technology and selecting from 8 different channels. Target has 360 foil and a single ring of LED's for Active Tracking. Target height - Trimble Standard - 135mm. Prism Constant: +22mm.

360 Prism includes a height adapter to Trimble Standard target height (135mm). The 360 prism is designed for Integrated Surveying withTrimble GNSS receivers. Compatible with all S Series, SX10, and SX12 instruments. Prism Constant: +2mm (0.002m). 1 Inch.

Traverse prism with sighting target and AR coating. Target height - Trimble Standard - 135mm. Prism Constant: -35mm

Maintain target lock with confidence using Trimble Active Tracking technology and selecting from 8 different channels. This target can also work as a passive 360 prism. Target height - Trimble Standard - 135mm. Prism Constant: +10mm Trimble MultiTrack Target Prism, including 7.4V Li-Ion battery Active Tracking Diodes Prism Constant: 10mm Prism Accuracy: 5" Prism Size: 20mm Tracker Range: 800m

The assembly features a 25 mm copper-coated prism, for fog prevention, a tilting holder, with friction axis, zero or -30 mm offset. It's powder painted a fluorescent orange or yellow with fluorescent yellow targets and includes a 40-min adjustable circular vial on the side.

Trimble 360 Degree Mini Prism. 0.5'' (12.7mm) for RMT 606 / 604. Prism constant: +2mm
