Special Order

The handheld tray accessory allows users to attach the Geode to a CP3 Rugged Smartphone to have the components work as one integrated solution. This accessory is sold separately from the Geode.

Small Monitoring Prism 25mm Prism (Box of 25). Can be mounted horizontally or vertically. Prism Constant: -17mm.

Adapt the thread size to 5/8 x 11 for mounting prisms on the leveling rod’s female adapter Weighs 0.20 lb (0.09 kg)

Trimble Monitoring Prism less than 2" with Mounting Assembly -40mm offset. Prisim constant: -40mm. 62mm Prism.

This Snap-Tite® Rod Level works with Crain’s SVR 25-Foot Series Grade Leveling Rod ONLY Snap arms fold away for convenient storage and will fit easily into a pocket Grade Leveling Rod is sold separately Weighs 0.10 lb (0.05 kg)

Standard USB cable for PC connection. 5'. Geospace Technologies.

TruPulse 200/B & 360/B mounting bracket For MapStar TruAngle.

The Gardner Rod rest is a self-retracting ‘kickstand’ for survey rods Attaches quickly with one thumbscrew and is activated by simply pushing down a few inches on the handle Legs self-retract when the rod is lifted Made of durable anodized aluminum that won’t rust or fatigue and has a stainless steel clamp screw Holds the rod at a 20-degree zenith angle 1.25 inch Outside Diameter Weighs 1.55 lb (0.70 kg) Pole not included

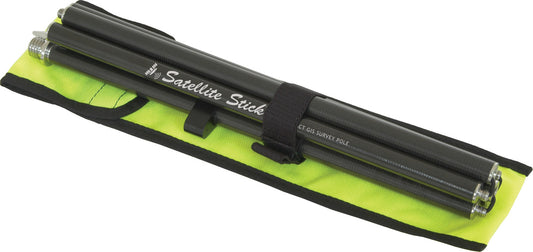

The Satellite Stick™ XL is composed of six carbon fiber sections connected by an elastic shock cord Each section measures 25 mm (1 in) diameter Sections screw together with 303 stainless steel fittings to make a rigid pole Collapses to the compact length of 37.5 cm (1.23 ft) Includes a 40-minute adjustable bubble, an elastic strap, a replaceable point, and a carrying bag Use adapter (#D11145) to increase the diameter of the pole to 1.25 inches to accommodate Claw™ series data collector pole clamps (sold separately) Weighs 2.75 lb (1.25 kg)

Replacement straps for S3 instrument transport case.

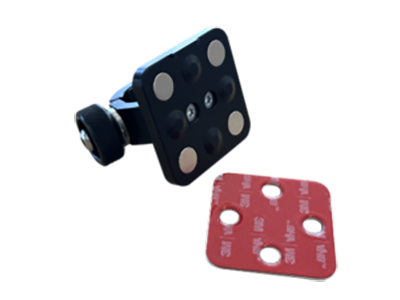

The Trimble Range Pole bracket with Magnet mount is a new bracket that can be used to mount a mobile device to a survey pole. The bracket can be used with any of Trimble’s 30mm survey poles, including the short pole for handheld use. It can also be used for any other  application requiring a mounting solution for connecting a phone or tablet to a survey rod. The bracket consists of a clamp with magnet plate, and a metal plate with adhesive backing.

Trimble Adapter, SS, Monument, 1 1/2" Pipe.

The Claw™ Series is designed to prevent the user from over tightening the pole clamp screw and accidentally crushing or cracking the pole The clamping function is limited so over-tightening cannot occur Made of durable anodized aluminum for years of trouble-free use in the field These clamps are compatible with our existing Quick-Release cradles for most popular data controllers or you can pair it with the Claw Quick-Release Cradle for your collector/controller Quick-Release cradles plug directly into Quick-Release Pole Clamps Designed to fit a pole diameter of 1.25 in (32 mm), however a 1 inch (25.4 mm) pole can be used Features a 40-minute vial built on to the clamp The Delrin Adapter can be purchased seperately to increase the OD of a 1-inch pole to 1.25-inches (#D11145) Weighs 0.38 lb (0.17 kg)

The original Open Clamp Pole Bracket and Cradle technology designed by SECO These products offer a fast and efficient way to mount data collectors or controllers to antenna poles and rover rods The aluminum open clamp design features a quick-release button and a stainless steel clamp screw that attaches to the pole Depressing the quick-release button will allow the Claw Quick-Release Cradle or standard cradle to rotate in to a comfortable position for reading the data collector or controller Manufactured from black anodized aluminum Designed for standard 1.25 inch OD rods and poles Includes Quick Release and Battery Slot Weighs 0.46 lb (0.21 kg)

Seco Monster Gear Bag has four deep-zippered pockets – two front and two side Two interior pockets – 14 x 12 x 2 inches (35.56 x 30.48 x 5.08 cm) with hook-and-loop closures Heavy-duty nylon webbing carrying straps Enough space to carry all of your tools, clothes, or other miscellaneous gear Dimensions: 30 x 14 x 20 inches (76.2 x 35.56 x 50.8 cm) Orange Weighs 3.78 lb (1.72 kg)

This bipod features a special head that will hold a rectangular rod The head will fit rods with widths between 1.57 and 2.56 inches Flo Orange Weighs 4.00 lb (1.82 kg)

Incorporates a simple stainless steel locking mechanism that’s easy to set while adjusting the prism and target tilt The heavy-duty 62 mm silver-coated prism is sealed in a strong canister with an ‘O’ ring to prevent water and dust from getting inside The prism can be mounted in either 0 or -30 mm offset positions Tilting axis height is 115 mm 5.5 x 7-inch Target size Target Color is Flo Orange with Black Weighs 1.59 lb (0.72 kg)

Lightweight aluminum scanner sphere 230 mm diameter, accuracy < 2 mm Painted non-glare white Female 5/8 x 11 threaded mounting Center height is 114 mm from bottom flat Weighs 2.70 lb (1.22 kg)

This 25 mm, copper-coated prism features aluminum double yoke construction w/tilting coaxial target Two on-board 130-minute vials — top and bottom Includes replaceable plumb bob point 0 and -30 mm Offset Flo Yellow Weighs 0.62 lb (0.28 kg)

The -30/0 mm offsets enable the Premier Prism Assembly to be used with Nikon, Topcon, Sokkia and other total stations The 62 mm copper-coated prism is encased in a heavy-duty canister with M20 threads Features a prism accuracy of <5 seconds Tilting holder is constructed of anodized aluminum Height of the prism in the holder is 100 mm and -30/0 mm offsets The mounting base features standard female 5/8 x 11 threads Target size 6 x 9 inches (15.2 x 22.8 cm) Target Colors are Flo Orange with Black Weighs 1.75 lb (0.80 kg)
