Accessories

SECO’s 5114-10 is an extra-tall magnet mount for use when attaching GNSS receivers with downward antennas (like the Trimble R10) to vehicles or other metal surfaces An innovative spring design allows for greater flex to the magnets for use on curved surfaces The 5114-10 is lightweight due to its stainless-steel construction Measures 6.375 inches (162 mm) in height Weighs 3.75 lb (1.70 kg)

This lightweight magnetic mount system adapts easier to curved surfaces Features a 5/8 x 11 adapter allows for quick setups Weighs 4.15 lb (1.88 kg)

This padded carrying case for tribrachs has a heavy-duty zipper, dust flaps and nylon carrying straps.

The Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo-driven and robotic total stations, 3-D laser scanners or construction lasers The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point A retaining system—which prevents leg kick out and accidental falls on slick surfaces—is stored on the inside of the leg and can be left in place when the tripod is not in use The large ‘footbed’ is there to facilitate solid planting for stability The shape and size of the foot are designed to allow for a solid placement on any terrain The foot is equipped with a replaceable point and a retention loop for use with a safety strap The Tri-Max can handle equipment up to 65 lb (30 kg) Quick Clamp Lock type Fiberglass Legs, black Hardware Extends 71 in (1.8 m) Collapses 44.5 in (113 cm) Weighs 17.00 lb (7.70 kg)

This combo allows easy conversions from “control” to “topo” surveys The quick-release pin and matched drill holes are the key Aluminum point weighs 0.15 lb (0.07 kg) Aluminum topo shoe weighs 0.20 lb (0.09 kg)

Adjustable 6 inch (152 cm) Black and White tilting target, for affixing to pole top and used in multiple survey jobs. Contrasting 6″ (152mm) Black and White pattern Matte non-glare target material Adjustable tilting axis Anodized aluminum yoke and target plate Axis height 135mm 5/8-11 threaded base Weight 0.90 lbs, 0.41kg

Tilting pivot allows measurement on sloped or flat pipe surfaces Standard topo shoe length, 3.375-inch (85.7-mm), compatible with all SECO Poles 2-inch (50.8-mm) diameter chrome-plated steel housing with grade-8 ceramic magnet ring Magnet has 40 pounds of pull force on 3/8-inch (9.5-mm) clean steel plate Black anodized machined 6061 aluminum body Machined brass pole connecter with female 5/8 x 11 threads Weighs 0.55 lb (0.25 kg)

The Thumb-Release Tripod uses the same thumb action release and lock mechanism as the popular Thumb-Release Bipod 1-to-1.5 inch (25.4-to-38.1 mm) outside diameter poles thread easily through the open clamp on top The legs (independently) extend to 6 ft (1.8 m) and collapse to 43 in (109 cm) Fluorescent Yellow Weighs 6.00 lb (2.60 kg)

The Mini Bipod utilizes the same design concepts as the popular 5217-04 bipod, just shorter 1-to-1.25 inch (25.4-to-31.8 mm) diameter poles attach easily through the open clamp 1.5 inch (3.81 cm) outside diameter poles can be loaded through the top Collapses to 25 inches (63.5 cm) and extends to 35 inches (88.9 cm) Flo Yellow Weighs 3.50 lb (1.60 kg)

SECO Smart Phones Cradle Assembly.

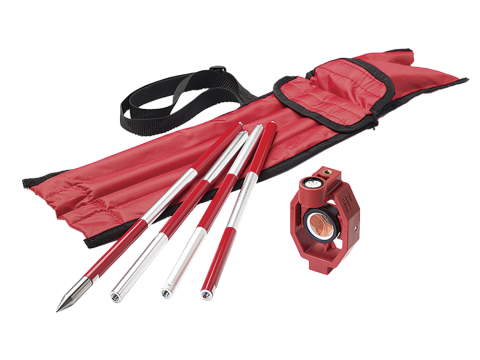

This system tilts and slides up and down pin poles Features a 25 mm, 0 offset silver-coated prism and a high-quality aluminum holder Site cones double as locks The prism has a 40-minute adjustable vial The kit includes four 1-foot (30.5 cm) pole sections each with a 0.50-ft (15.24 cm) mark Prism includes an adapter so it can be used on any pole or tribrach adapter with 5/8 x 11 threads A system bag is also included Weighs 1.40 lb (0.63 kg)

This -30 mm offset prism holder is constructed from durable aluminum and sealed with a rugged corrosion-proof electrostatic powder paint coating Includes copper-coated (#6411-02-BLK) prism Flo Orange Weighs 1.50 lb (0.68 kg)

These bags are heavily padded for prism and tribrach protection and transportation.

Magnet has a 3.5-inch diameter Features a quick-release tip Weighs 1.16 lb (0.53 kg)

Magnet has a 3.5 inch diameters. Features a 5/8 x 11 tip. Weighs 1.17 lb (0.53 kg).

Hardened steel replacement point for most SECO tripods and prism pole points Weighs 0.06 lb (0.03 kg)

The rotating friction-top adapter allows the prism to be pointed after installation in the tribrach. Fits all tribrachs.

This adapts retro prisms to Swiss-style tribrachs Includes a removable Zeiss plug and locking screw Fits all tribrachs Weighs 1.75 lb (0.80 kg)

This bracket holds a radio antenna securely to a tripod leg The heavy-duty bracket makes plumbing the antenna easy Fits all full-size and heavy-duty tripods and uses a 1/2 inch long, 5/8 x 11 male stud to secure the antenna or extension (tripod sold separately) It can be used with the SECO Six Foot Snap-Lock Radio Antenna Pole (#5139-02) or any extension with a male/female 5/8 x 11 connection Weighs 1.55 lb (0.70 kg)

Use the Pole Adapter on a SECO Quick Change™ Poles to achieve a target height of 150 mm For: Adjustable 5/8 x 11 Target Height: 50 mm to 115 mm Weighs 0.29 lb (0.13 kg)
