Accessories

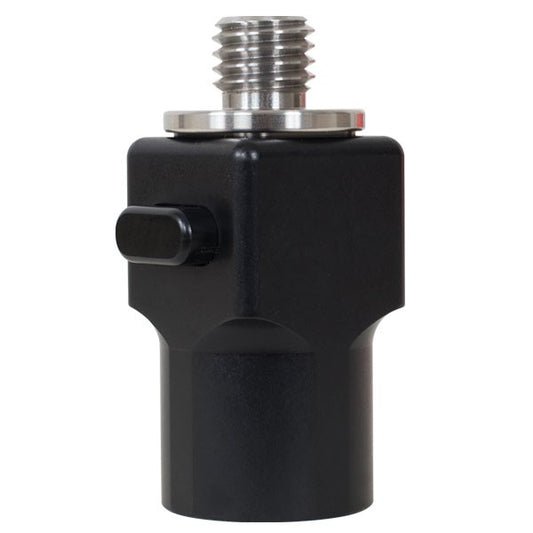

Use the Pole Adapter on a SECO Quick Change™ Poles to achieve a target height of 150 mm For: GPS Antenna Target Height: 0 mm Length: 150 mm Weighs 0.22 lb (0.10 kg)

The SECO Prism Pole Topo Shoe is constructed of high-quality aluminum. It fits most poles.

This steel body replacement point fits prism poles with 5/8 x 11 male threads on the bottom of the pole. 3.37 inch steel body.

This convenient tool allows you to adjust and calibrate prism pole vials. Adjusting jig features an L-bracket to rest the prism pole on and the adjustable top piece.

3.37 inch steel body, removable point Weighs 0.30 lb (0.14 kg)

Features ‘site cones’ that improve vertical angle pointing — the site cones double as tilting-axis lock knobs The adjustable 40-min vial is mounted on the front side and is easy to see and simple to adjust This mini-prism is a zero-offset if you reverse the prism. Includes carrying case Flo Orange Weighs 0.30 lb (0.14 kg)

Extends to 4.80 ft (1.5 m) and collapses to 2.26 ft (0.7 m) Dual graduations: tenths and mm increments Constructed of sturdy aluminum Quick-Release Lock and 40 minute vial Weighs 2.33 lb (1.80 kg)

Replacement point for Mini Prism Weighs only 0.03 lb (0.01 kg)

The Mini Prism Monopod Kit forms a stable base with your 6000-Series Mini Prism (sold separately) The kit is easy to set up and can be used by just one person Ideal for: construction surveys, inspections, asbuilts, and many other applications Add a standard 5/8 x 11 extension to the kit to achieve heights to 4 feet Weighs 2.25 lb (1.02 kg)

Features dual grads (0.01 ft/cm), adjustable tip and TLV™ lock including 40-minute vial on the lock Extends to 5.10 ft (1.55 m) Collapses to 2.70 ft (0.82 m) Prism Height 115 cm Color: Red Weighs 2.30 lb (1.04 kg)

6-5/8-inch flat head with large center hole (2-5/8-inch) to facilitate an easy set-up over a point Foot is equipped with a replaceable point made of hardened steel Dual Locks (Quick Clamp and Screw Clamp) Standard 5/8 x 11 threaded brass instrument stud Yellow fiberglass legs, orange aluminum hardware Snap cap to protect tripod head Comes with shoulder strap for comfortable carrying over longer distances Made in North America under strict quality controls Extends 70.75 inches (179 cm) Collapses 43.75 inches (111 cm) Weighs 13.60 lb (6.16 kg)

Features a male 5/8 x 11 thread Aluminum body Easy-to-replace steel point Weighs 0.18 lb (0.07 kg)

Features an anodized aluminum body Easy-to-replace steel point Sharp Point Weighs 0.16 lb (0.07 kg)

This point features an anodized aluminum body and an easy-to-replace steel point.

Level Vial assembly fits most 8ft & 12ft Prism Rods Assembly is for 1.25-inch diameter poles Featuring a 40-minute vial (#D11242) Top Adjusted Vial Holder Assembly Includes screws Weighs 0.14 lb (0.06 kg)

Bright 650-nm focused laser dot Circular vial w/ 8-minute sensitivity Standard three-prong forced centering with center lines Included is a standard 3 volt CR2 lithium battery Weighs 1.65 lb (0.75 kg)

5/8 X 11 aluminum prism height adapters allow the base pole to be used with other manufacturer’s 360° Prisms Converts a robotics pole to a GPS pole Weighs 0.26 lb (0.12 kg)

Mounts to structural columns for stability and support for heavy instruments SECO’s Heavy Duty Column Clamp has a solid stable design and works with all 5/8 x 11 instruments The adjustable column rotates and moves vertically to orient the instrument when needed and features 12 inches (30.48 cm) of height adjustment Centerline of the 5.8 x 11 stud to column measures 15 inches (38.1 cm) Includes 20 inch standard 3/4 inch NPT Pipe with Heavy Duty sliding clamp Constructed of structural aluminum for industrial applications and stainless steel hardware Weight is 15 lbs. 6.8kg

SECO’s Heavy-Duty Column Clamp has a solid stable design and works with all 5/8 x 11 instruments The adjustable column rotates and moves vertically to orient the instrument when needed and features 12-inches (30.48 cm) of height adjustment Includes a 2-inch (5.08 cm) by 10 ft (3.05 m) strap rated for a 2200 pound load and a heavy duty ratchet to create a strong connection to both round and square columns The centerline of the 5/8 x 11 stud to column measures 15 inches (38.1 cm) Constructed of structural aluminum for industrial applications and stainless steel hardware Weighs 13.75 lb (6.24 kg)

The Seco GPS Tripod bag features a full-length zipper and shoulder strap. Designed to carry the tripod without the point on the center pole to prevent damage to the pole.
