Poles

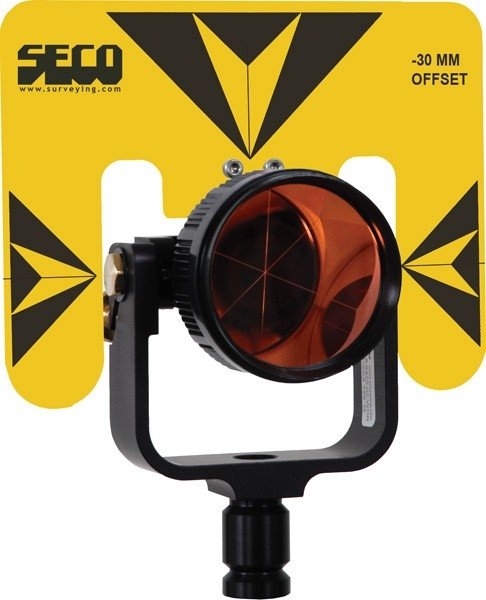

The -30/0 mm offsets enable the Premier Prism Assembly to be used with Nikon, Topcon, Sokkia and other total stations The 62 mm copper-coated prism is encased in a heavy-duty canister with M20 threads Features a prism accuracy of <5 seconds Tilting holder is constructed of anodized aluminum Height of the prism in the holder is 100 mm and -30/0 mm offsets The mounting base features standard female 5/8 x 11 threads Target size 6 x 9 inches (15.2 x 22.8 cm) Target Colors are Flo Orange with Black Weighs 1.75 lb (0.80 kg)

The Mini Prism Monopod Kit forms a stable base with your 6000-Series Mini Prism (sold separately) The kit is easy to set up and can be used by just one person Ideal for: construction surveys, inspections, asbuilts, and many other applications Add a standard 5/8 x 11 extension to the kit to achieve heights to 4 feet Weighs 2.25 lb (1.02 kg)

Extends to 4.80 ft (1.5 m) and collapses to 2.26 ft (0.7 m) Dual graduations: tenths and mm increments Constructed of sturdy aluminum Quick-Release Lock and 40 minute vial Weighs 2.33 lb (1.80 kg)

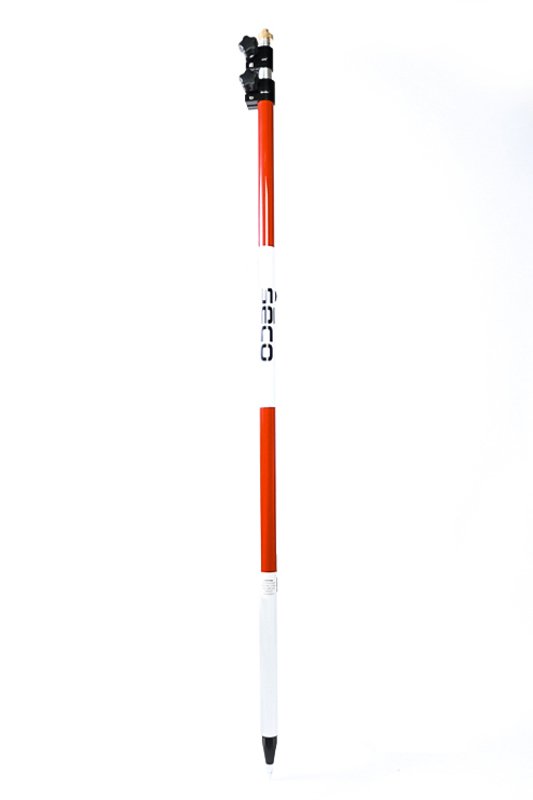

Features dual grads (0.01 ft/cm), adjustable tip and TLV™ lock including 40-minute vial on the lock Extends to 5.10 ft (1.55 m) Collapses to 2.70 ft (0.82 m) Prism Height 115 cm Color: Red Weighs 2.30 lb (1.04 kg)

Aluminum pole extensions have 5/8 x 11 female threads on the bottom and 5/8 x 11 male threads on the top to allow more added sections 2 ft (61 cm) in Length 1.25 in (32 mm) Outside Diameter Standard Yellow Weighs 1.10 lb (0.50 kg)

Use the Pole Adapter on a SECO Quick Change™ Poles to achieve a target height of 150 mm For: GPS Antenna Target Height: 0 mm Length: 150 mm Weighs 0.22 lb (0.10 kg)

Replacement tip for Trimble Carbon Fiber Monopole (PN 88142-01).

Small Monitoring Prism 25mm Prism (Box of 25). Can be mounted horizontally or vertically. Prism Constant: -17mm.

Trimble Monitoring Prism less than 2" with Mounting Assembly -40mm offset. Prisim constant: -40mm. 62mm Prism.

The 62 mm Premier Prism Assembly features a copper-coated canister type prism. It is waterproof, and has a M20 universal mounting thread.The tilting holder is anodized aluminum and features an improved locking clamp screw design and an 18-gauge steel target. Target Color is Yellow with Black.
